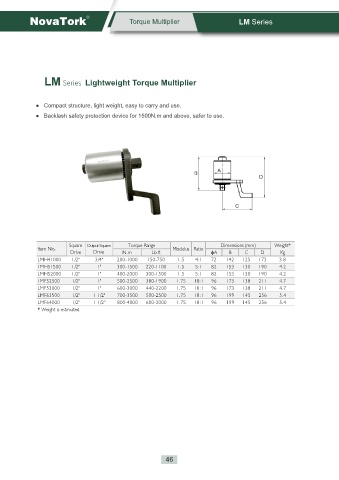

Torque Multiplier LM Series
LM Series Lightweight Torque Multiplier
● Compact structure, light weight, easy to carry and use.
● Backlash safety protection device for 1500N.m and above, safer to use.
A
B
D
C
Square Output Square Torque Range Dimensions (mm) Weight*
Item No. Modulus Ratio
Drive Drive N.m Lb.ft φA B C D Kg
LMH41000 1/2" 3/4" 200-1000 150-750 1.5 4:1 72 142 125 173 3.8
LMH51500 1/2" 1" 300-1500 220-1100 1.5 5:1 82 153 130 190 4.2
LMH52000 1/2" 1" 400-2000 300-1500 1.5 5:1 82 153 130 190 4.2
LMF52500 1/2" 1" 500-2500 380-1900 1.75 18:1 96 173 138 211 4.7
LMF53000 1/2" 1" 600-3000 440-2200 1.75 18:1 96 173 138 211 4.7
LMF63500 1/2" 1 1/2" 700-3500 500-2500 1.75 18:1 96 199 145 256 5.4
LMF64000 1/2" 1 1/2" 800-4000 600-3000 1.75 18:1 96 199 145 256 5.4
* Weight is estimated.
