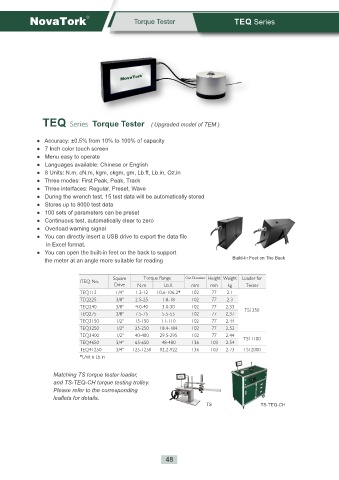

Torque Tester                      TEQ Series




















                TEQ      Series Torque Tester         ( Upgraded model of TEM )


              ●   Accuracy: ±0.5% from 10% to 100% of capacity
              ●   7 Inch color touch screen
              ●   Menu easy to operate
              ●   Languages available: Chinese or English
              ●   8 Units: N.m, cN.m, kgm, ckgm, gm, Lb.ft, Lb.in, Oz.in
              ●   Three modes: First Peak, Peak, Track
              ●   Three interfaces: Regular, Preset, Wave
              ●   During the wrench test, 15 test data will be automatically stored
              ●   Stores up to 8000 test data
              ●   100 sets of parameters can be preset
              ●   Continuous test, automatically clear to zero
              ●   Overload warning signal
              ●   You can directly insert a USB drive to export the data file
                    in Excel format.
              ●   You can open the built-in feet on the back to support
                   the meter at an angle more suitable for reading                 Build-In Feet on The Back



                                         Square    Torque Range   Out Diameter Height Weight  Loader for
                             ITEQ No.
                                         Drive   N.m       Lb.ft    mm     mm    kg    Tester
                             TEQ112       1/4“   1.2-12  10.6-106.2*  102  77    2.1
                             TEQ225       3/8"   2.5-25   1.8-18    102    77    2.3
                             TEQ240       3/8"   4.0-40   3.0-30    102    77   2.33
                                                                                       TS1350
                             TEQ275       3/8"   7.5-75   5.5-55    102    77   2.37
                             TEQ3150      1/2"  15-150    11-110    102    77   2.44
                             TEQ3250      1/2"  25-250   18.4-184   102    77   2.52
                             TEQ3400      1/2"  40-400   29.5-295   102    77   2.44
                                                                                      TS11100
                             TEQ4650      3/4"  65-650    48-480    136    103  2.54
                             TEQ41250     3/4"  125-1250  92.2-922  136    103  2.73   TS12000
                             *Unit is Lb.in


                    Matching TS torque tester loader,
                    and TS-TEQ-CH torque testing trolley.
                    Please refer to the corresponding
                    leaflets for details.
                                                                         TS                  TS-TEQ-CH
