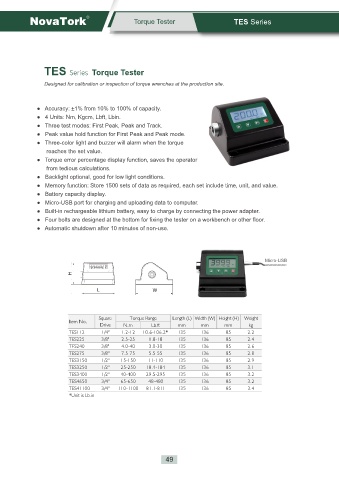

Torque Tester TES Series

TES Series Torque Tester

Designed for calibration or inspection of torque wrenches at the production site.

● Accuracy: ±1% from 10% to 100% of capacity.
● 4 Units: Nm, Kgcm, Lbft, Lbin.
● Three test modes: First Peak, Peak and Track.
● Peak value hold function for First Peak and Peak mode.
● Three-color light and buzzer will alarm when the torque
reaches the set value.
● Torque error percentage display function, saves the operator
from tedious calculations.
● Backlight optional, good for low light conditions.
● Memory function: Store 1500 sets of data as required, each set include time, unit, and value.
● Battery capacity display.
● Micro-USB port for charging and uploading data to computer.
● Built-in rechargeable lithium battery, easy to charge by connecting the power adapter.
● Four bolts are designed at the bottom for fixing the tester on a workbench or other floor.
● Automatic shutdown after 10 minutes of non-use.

Micro-USB

H

L W

Square Torque Range Length (L) Width (W) Height (H) Weight
Item No.
Drive N.m Lb.ft mm mm mm kg
TES112 1/4“ 1.2-12 10.6-106.2* 135 136 85 2.2
TES225 3/8" 2.5-25 1.8-18 135 136 85 2.4
TES240 3/8" 4.0-40 3.0-30 135 136 85 2.6
TES275 3/8" 7.5-75 5.5-55 135 136 85 2.8
TES3150 1/2" 15-150 11-110 135 136 85 2.9
TES3250 1/2" 25-250 18.4-184 135 136 85 3.1
TES3400 1/2" 40-400 29.5-295 135 136 85 3.2
TES4650 3/4" 65-650 48-480 135 136 85 3.2
TES41100 3/4" 110-1100 81.1-811 135 136 85 3.4
*Unit is Lb.in
