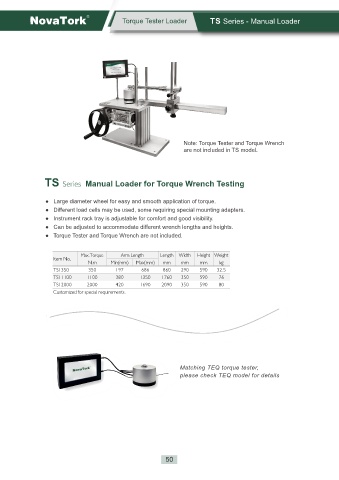

Torque Tester Loader TS Series - Manual Loader

Note: Torque Tester and Torque Wrench
are not included in TS model.

TS Series Manual Loader for Torque Wrench Testing

● Large diameter wheel for easy and smooth application of torque.
● Different load cells may be used, some requiring special mounting adapters.
● Instrument rack tray is adjustable for comfort and good visibility.
● Can be adjusted to accommodate different wrench lengths and heights.
● Torque Tester and Torque Wrench are not included.

Max.Torque Arm Length Length Width Height Weight
Item No.
N.m Min(mm) Max(mm) mm mm mm kg
TS1350 350 197 686 860 290 590 32.5
TS11100 1100 380 1350 1760 350 590 76
TS12000 2000 420 1690 2090 350 590 80
Customized for special requirements.

Matching TEQ torque tester,
please check TEQ model for details
