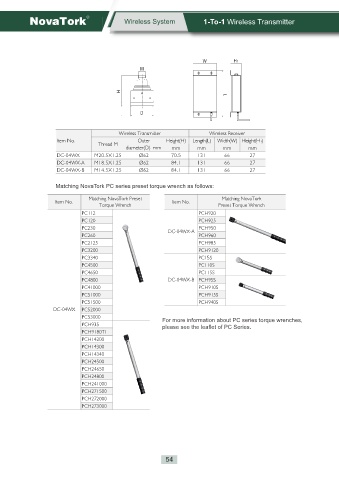

Wireless System 1-To-1 Wireless Transmitter

W H1
M

H

D L

Wireless Transmitter Wireless Receiver
Item No. Outer Height(H) Length(L) Width(W) Height(H1)
Thread M
diameter(D) mm mm mm mm mm
DC-04WX M20.5X1.25 Ø62 70.5 131 66 27
DC-04WX-A M18.5X1.25 Ø62 84.1 131 66 27
DC-04WX-B M14.5X1.25 Ø62 84.1 131 66 27

Matching NovaTork PC series preset torque wrench as follows:

Matching NovaTork Preset Matching NovaTork
Item No. Item No.
Torque Wrench Preset Torque Wrench
PC112 PCH920
PC120 PCH925
PC230 PCH950
DC-04WX-A
PC260 PCH960
PC2125 PCH985
PC3200 PCH9120
PC3340 PC15S
PC4500 PC110S
PC4650 PC115S
PC4800 DC-04WX-B PCH95S
PC41000 PCH910S
PC51000 PCH915S
PC51500 PCH940S
DC-04WX PC52000
PC53000
For more information about PC series torque wrenches,
PCH935 please see the leaflet of PC Series.
PCH9180T1
PCH14200
PCH14300
PCH14340
PCH24500
PCH24650
PCH24800
PCH241000
PCH271500
PCH272000
PCH273000

54
