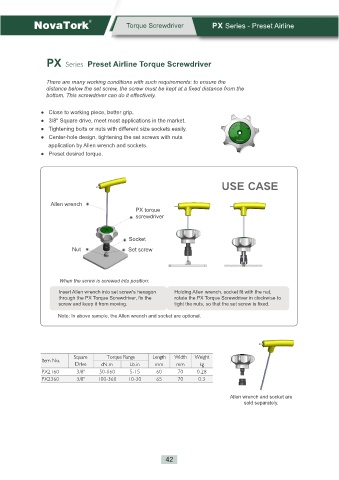

Torque Screwdriver PX Series - Preset Airline

PX Series Preset Airline Torque Screwdriver

There are many working conditions with such requirements: to ensure the
distance below the set screw, the screw must be kept at a fixed distance from the
bottom. This screwdriver can do it effectively.

● Close to working piece, better grip.
● 3/8" Square drive, meet most applications in the market.
● Tightening bolts or nuts with different size sockets easily.
● Center-hole design, tightening the set screws with nuts
application by Allen wrench and sockets.
● Preset desired torque.

VTF!DBTF

Allen wrench
PX torque
screwdriver

Socket
Nut Set screw

When the screw is screwed into position:
Insert Allen wrench into set screw's hexagon Holding Allen wrench, socket fit with the nut,
through the PX Torque Screwdriver, fix the rotate the PX Torque Screwdriver in clockwise to
screw and keep it from moving. tight the nuts, so that the set screw is fixed.
Note: In above sample, the Allen wrench and socket are optional.

Square Torque Range Length Width Weight
Item No.
Drive cN.m Lb.in mm mm kg
PX2160 3/8" 50-160 5-15 60 70 0.28
PX2360 3/8" 100-360 10-30 65 70 0.3

Allen wrench and socket are
sold separately.

42
