Torque Screwdriver MS Series - Mechanical

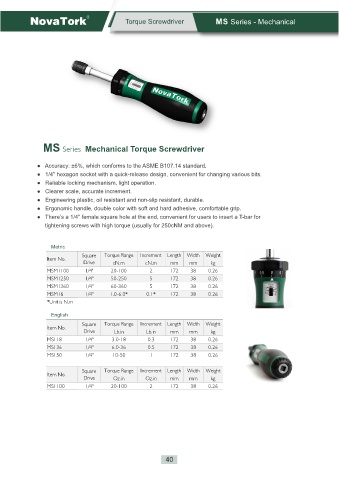

MS Series Mechanical Torque Screwdriver

● Accuracy: ±6%, which conforms to the ASME B107.14 standard.
● 1/4" hexagon socket with a quick-release design, convenient for changing various bits.
● Reliable locking mechanism, light operation.
● Clearer scale, accurate increment.
● Engineering plastic, oil resistant and non-slip resistant, durable.
● Ergonomic handle, double color with soft and hard adhesive, comfortable grip.
● There’s a 1/4" female square hole at the end, convenient for users to insert a T-bar for
tightening screws with high torque (usually for 250cNM and above).

Metric

Square Torque Range Increment Length Width Weight
Item No.
Drive cN.m cN.m mm mm kg
MSM1100 1/4" 20-100 2 172 38 0.26
MSM1250 1/4" 50-250 5 172 38 0.26
MSM1360 1/4" 60-360 5 172 38 0.26
MSM16 1/4" 1.0-6.0* 0.1* 172 38 0.26
*Unit is N.m
English

Square Torque Range Increment Length Width Weight
Item No.
Drive Lb.in Lb.in mm mm kg
MS118 1/4" 3.0-18 0.3 172 38 0.26
MS136 1/4" 6.0-36 0.5 172 38 0.26
MS150 1/4" 10-50 1 172 38 0.26

Square Torque Range Increment Length Width Weight
Item No.
Drive Oz.in Oz.in mm mm kg
MS1100 1/4" 20-100 2 172 38 0.26
