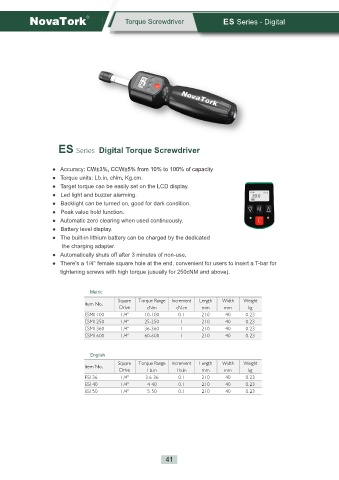

Torque Screwdriver ES Series - Digital

ES Series Digital Torque Screwdriver

● Accuracy: CW±3%, CCW±5% from 10% to 100% of capacity
● Torque units: Lb.in, cNm, Kg.cm.
● Target torque can be easily set on the LCD display.
● Led light and buzzer alarming.
● Backlight can be turned on, good for dark condition.
● Peak value hold function.
● Automatic zero clearing when used continuously.
● Battery level display.
● The built-in lithium battery can be charged by the dedicated
the charging adapter.
● Automatically shuts off after 3 minutes of non-use.
● There’s a 1/4" female square hole at the end, convenient for users to insert a T-bar for
tightening screws with high torque (usually for 250cNM and above).

Metric

Square Torque Range Increment Length Width Weight
Item No.
Drive cNm cN.m mm mm kg
ESM1100 1/4" 10-100 0.1 210 40 0.23
ESM1250 1/4" 25-250 1 210 40 0.23
ESM1360 1/4" 36-360 1 210 40 0.23
ESM1600 1/4" 60-600 1 210 40 0.23

English
Square Torque Range Increment Length Width Weight
Item No.
Drive Lb.in Lb.in mm mm kg
ES136 1/4" 3.6-36 0.1 210 40 0.23
ES140 1/4" 4-40 0.1 210 40 0.23
ES150 1/4" 5-50 0.1 210 40 0.23
