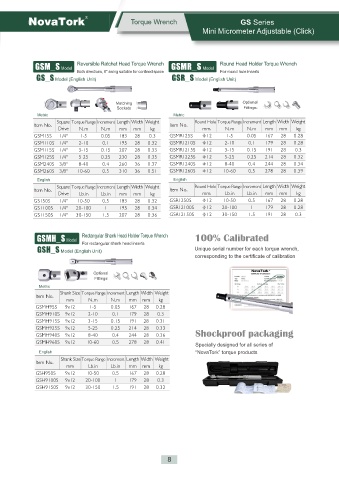

Page 13 - 2024诺特扭力英文NovaTork-Torque

Torque Wrench GS Series
Mini Micrometer Adjustable (Click)

Reversible Ratchet Head Torque Wrench Round Head Holder Torque Wrench
GSM_S Model GSMR_S Model
Both directions, 8° swing suitable for confined space For round hole inserts
GS_S Model (English Unit) GSR_S Model (English Unit)

䯒 䯓
Matching Optional
Sockets Fittings:
Metric Metric
Square Torque Range Increment Length Width Weight Round Hole Torque Range Increment Length Width Weight
Item No. Item No.
Drive N.m N.m mm mm kg mm N.m N.m mm mm kg
GSM15S 1/4" 1-5 0.05 183 28 0.3 GSMR125S φ12 1-5 0.05 167 28 0.28
Series
GSM110S 1/4" 2-10 0.1 195 28 0.32 GSMR1210S φ12 2-10 0.1 179 28 0.28
GSM115S 1/4" 3-15 0.15 207 28 0.33 GSMR1215S φ12 3-15 0.15 191 28 0.3
● Accuracy: ±4% in clockwise direction from 20% to 100% of capacity. GSM125S 1/4" 5-25 0.25 230 28 0.35 GSMR1225S φ12 5-25 0.25 214 28 0.32
● Small sizes and light weight, and can be operated in confined spaces. GSM240S 3/8" 8-40 0.4 260 36 0.37 GSMR1240S φ12 8-40 0.4 244 28 0.34
● Permanently stamped major and minor scales for precision torque values setting. GSM260S 3/8" 10-60 0.5 310 36 0.51 GSMR1260S φ12 10-60 0.5 278 28 0.39
● Minor scale is 1/10 of increment of main scale. English English
● Set torque by locking ring. The rebound self-locking structure can reliably lock the required torque. Item No. Square Torque Range Increment Length Width Weight Item No. Round Hole Torque Range Increment Length Width Weight
mm
Lb.in
Lb.in
kg
Drive
mm
mm
Lb.in
Lb.in
kg
mm
mm
● Grooved non-slip grip fits comfortably in your hand. GS150S 1/4" 10-50 0.5 183 28 0.32 GSR1250S φ12 10-50 0.5 167 28 0.28
● Various kinds of heads designed for different applications: GS1100S 1/4" 20-100 1 195 28 0.34 GSR12100S φ12 20-100 1 179 28 0.28
- GSM_S / GS_S model: Reversible ratchet head, fine-tooth ratchets suitable for operation in GS1150S 1/4" 30-150 1.5 207 28 0.36 GSR12150S φ12 30-150 1.5 191 28 0.3
confined spaces requiring only 8 degrees swing.
- GSMH_S / GSH_S model: Head holder for standard 9x12mm Rectangular Shank Head Holder Torque Wrench
rectangular shank heads. GSMH_S Model For rectangular shank head inserts 100% Calibrated
- GSMR_S / GSR_S model: Round head holders for Ф12mm heads. GSH_S Model (English Unit) Unique serial number for each torque wrench,
corresponding to the certificate of calibration
Optional
Fittings: RE064098
Metric
Shank Size Torque Range Increment Length Width Weight
Upsrvf!Mpdljoh Item No. mm N.m N.m mm mm kg
GSMH95S 9x12 1-5 0.05 167 28 0.28
GSMH910S 9x12 2-10 0.1 179 28 0.3
GSMH915S 9x12 3-15 0.15 191 28 0.31
by the other hand GSMH925S 9x12 5-25 0.25 214 28 0.33
GSMH940S 9x12 8-40 0.4 244 28 0.36 Shockproof packaging
GSMH960S 9x12 10-60 0.5 278 28 0.41 Specially designed for all series of
English “NovaTork” torque products
Shank Size Torque Range Increment Length Width Weight
Item No.
mm Lb.in Lb.in mm mm kg
GSH950S 9x12 10-50 0.5 167 28 0.28
GSH9100S 9x12 20-100 1 179 28 0.3
Pull and hold GSH9150S 9x12 30-150 1.5 191 28 0.32
the locking ring Release the locking ring
after torque being set

8
