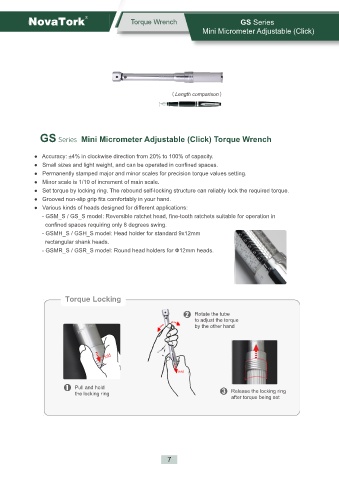

Torque Wrench GS Series
Mini Micrometer Adjustable (Click)

䯒Length comparison䯓

GS Series Mini Micrometer Adjustable (Click) Torque Wrench

● Accuracy: ±4% in clockwise direction from 20% to 100% of capacity.
● Small sizes and light weight, and can be operated in confined spaces.
● Permanently stamped major and minor scales for precision torque values setting.
● Minor scale is 1/10 of increment of main scale.
● Set torque by locking ring. The rebound self-locking structure can reliably lock the required torque.
● Grooved non-slip grip fits comfortably in your hand.
● Various kinds of heads designed for different applications:
- GSM_S / GS_S model: Reversible ratchet head, fine-tooth ratchets suitable for operation in
confined spaces requiring only 8 degrees swing.
- GSMH_S / GSH_S model: Head holder for standard 9x12mm
rectangular shank heads.
- GSMR_S / GSR_S model: Round head holders for Ф12mm heads.

Upsrvf!Mpdljoh

2 Rotate the tube
to adjust the torque
by the other hand

Hold

Hold

1 Pull and hold
the locking ring 3 Release the locking ring
after torque being set
