Page 9 - 2024诺特扭力英文NovaTork-Torque

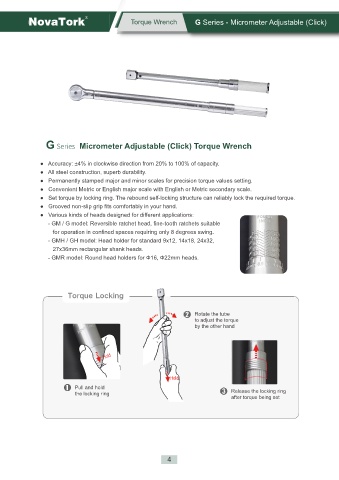

Torque Wrench G Series - Micrometer Adjustable (Click)

G Series Micrometer Adjustable (Click) Torque Wrench

● Accuracy: ±4% in clockwise direction from 20% to 100% of capacity.
● All steel construction, superb durability.
● Permanently stamped major and minor scales for precision torque values setting.
● Convenient Metric or English major scale with English or Metric secondary scale.
● Set torque by locking ring. The rebound self-locking structure can reliably lock the required torque.
● Grooved non-slip grip fits comfortably in your hand.
● Various kinds of heads designed for different applications:
- GM / G model: Reversible ratchet head, fine-tooth ratchets suitable
for operation in confined spaces requiring only 8 degrees swing.
- GMH / GH model: Head holder for standard 9x12, 14x18, 24x32,
27x36mm rectangular shank heads.
- GMR model: Round head holders for Ф16, Ф22mm heads.

Upsrvf!Mpdljoh

2 Rotate the tube
to adjust the torque
by the other hand

Hold

Hold
1 Pull and hold
the locking ring 3 Release the locking ring
after torque being set

4
