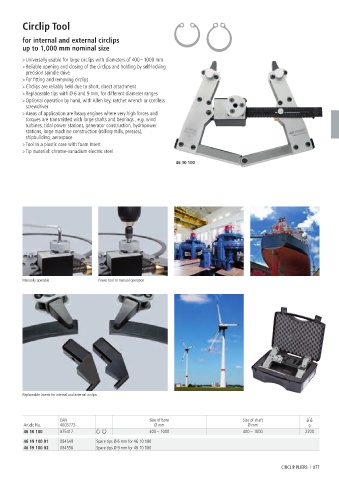

Circlip Tool

for internal and external circlips
up to 1,000 mm nominal size
> Universally usable for large circlips with diameters of 400 – 1000 mm
> Reliable opening and closing of the circlips and holding by self-locking
precision spindle drive
> For fitting and removing circlips
> Circlips are reliably held due to short, direct attachment
> Replaceable tips with Ø 6 and 9 mm, for different diameter ranges
> Optional operation by hand, with Allen key, ratchet wrench or cordless
screwdriver
> Areas of application are heavy engines where very high forces and
torques are transmitted with large shafts and bearings , e.g. wind
turbines, tidal power stations, generator construction, hydropower
stations, large machine construction (rolling mills, presses),
shipbuilding, aerospace
> Tool in a plastic case with foam insert
> Tip material: chrome-vanadium electric steel

46 10 100

Manually operable Power tool or manual operation

Replaceable inserts for internal and external circlips

EAN Size of bore Size of shaft
Article No. 4003773- Ø mm Ø mm g
46 10 100 075417 400 – 1000 400 – 1000 2200
46 19 100 01 084549 Spare tips Ø 6 mm for 46 10 100
46 19 100 02 084556 Spare tips Ø 9 mm for 46 10 100

CIRCLIP PLIERS I 077
