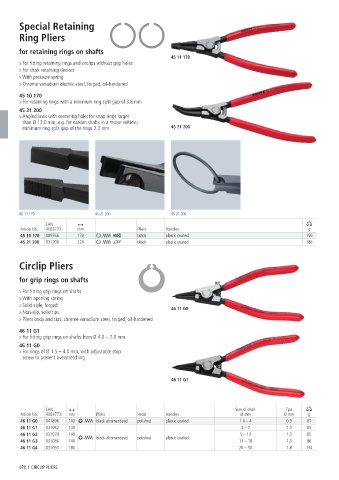

P. 78

Special Retaining


        Ring Pliers

        for retaining rings on shafts
                                                             45 11 170
        > For fitting retaining rings and circlips without grip holes
        > For shaft retaining devices
        > With pressure spring
        > Chrome vanadium electric steel, forged, oil-hardened
        45 10 170
        > For retaining rings with a minimum ring split gap of 3.6 mm
        45 21 200
        > Angled jaws with centering hole; for snap rings larger
         than Ø 12.0 mm, e.g. for cardan shafts in a motor vehicle;
         minimum ring split gap of the rings 2.2 mm          45 21 200

















        45 11 170                 45 21 200                  45 21 200
                 EAN
        Article No.  4003773-  mm                Pliers    Handles                                           g
        45 10 170  089766   170                     black  plastic coated                                   156
        45 21 200  031208    220           30°       black  plastic coated                                  186




        Circlip Pliers

        for grip rings on shafts
        > For fitting grip rings on shafts
        > With opening spring
        > Solid style, forged                                46 11 G0
        > Non-slip, solid tips
        > Pliers body and tips: chrome vanadium steel, forged, oil-hardened

        46 11 G1
        > For fitting grip rings on shafts from Ø 4.0 – 7.0 mm
        46 11 G0
        > For rings of Ø 1.5 – 4.0 mm, with adjustable stop
         screw to prevent overstretching



                                                             46 11 G1




                 EAN                                                                Size of shaft    Tips
        Article No.  4003773-  mm  Pliers        Head      Handles                    Ø mm           Ø mm    g
        46 11 G0  047896  140           black atramentized  polished  plastic coated  1.5 – 4         0.9    87
        46 11 G1  031062    140                                                       4 – 7           1.3    85
        46 11 G2  031079  140           black atramentized   polished   plastic coated   5 – 13       1.3    85
        46 11 G3  031086    140                                                      14 – 18          1.3    86
        46 11 G4  031093  180                                                        20 – 30          1.8   134


          078  I CIRCLIP PLIERS
