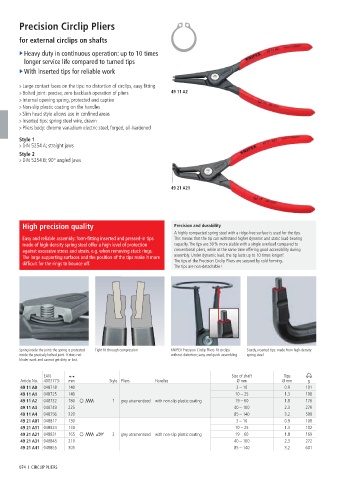

Precision Circlip Pliers

for external circlips on shafts

► Heavy duty in continuous operation: up to 10 times
longer service life compared to turned tips
► With inserted tips for reliable work

> Large contact faces on the tips: no distortion of circlips, easy fitting
> Bolted joint: precise, zero backlash operation of pliers 49 11 A2
> Internal opening spring, protected and captive
> Non-slip plastic coating on the handles
> Slim head style allows use in confined areas
> Inserted tips: spring steel wire, drawn
> Pliers body: chrome vanadium electric steel, forged, oil-hardened

Style 1
> DIN 5254 A; straight jaws
Style 2
> DIN 5254 B; 90° angled jaws

49 21 A21

High precision quality Precision and durability
A highly compacted spring steel with a ridge-free surface is used for the tips.
Easy and reliable assembly: form-fitting inserted and pressed-in tips This means that the tip can withstand higher dynamic and static load-bearing
made of high-density spring steel offer a high level of protection capacity. The tips are 30 % more stable with a single overload compared to
against excessive stress and strain, e.g. when removing stuck rings. conventional pliers, while at the same time offering good accessibility during
The large supporting surfaces and the position of the tips make it more assembly. Under dynamic load, the tip lasts up to 10 times longer!
difficult for the rings to bounce off. The tips of the Precision Circlip Pliers are secured by cold forming.
The tips are non-detachable!

Spring inside the joint: the spring is protected Tight fit through compression KNIPEX Precision Circlip Pliers: fit circlips Sturdy, inserted tips: made from high-density
inside the precisely bolted joint. It does not without distortion; easy and quick assembling spring steel
hinder work and cannot get dirty or lost.

EAN Size of shaft Tips
Article No. 4003773- mm Style Pliers Handles Ø mm Ø mm g
49 11 A0 048718 140 3 – 10 0.9 101
49 11 A1 048725 140 10 – 25 1.3 100
49 11 A2 048732 180 1 grey atramentized with non-slip plastic coating 19 – 60 1.8 170
49 11 A3 048749 225 40 – 100 2.3 270
49 11 A4 048756 320 85 – 140 3.2 599
49 21 A01 048817 130 3 – 10 0.9 100
49 21 A11 048824 130 10 – 25 1.3 102
49 21 A21 048831 165 90° 2 grey atramentized with non-slip plastic coating 19 – 60 1.8 169
49 21 A31 048848 210 40 – 100 2.3 272
49 21 A41 048855 305 85 – 140 3.2 601

074 I CIRCLIP PLIERS
