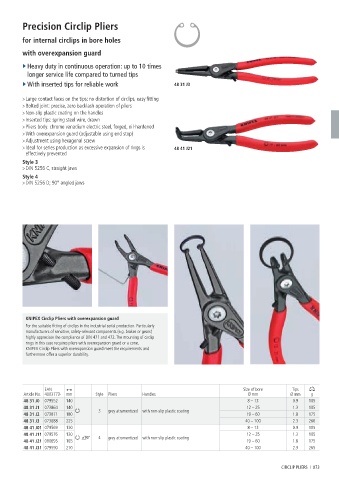

Precision Circlip Pliers

for internal circlips in bore holes

with overexpansion guard

► Heavy duty in continuous operation: up to 10 times
longer service life compared to turned tips

► With inserted tips for reliable work 48 31 J3

> Large contact faces on the tips: no distortion of circlips, easy fitting
> Bolted joint: precise, zero backlash operation of pliers
> Non-slip plastic coating on the handles
> Inserted tips: spring steel wire, drawn
> Pliers body: chrome vanadium electric steel, forged, oil-hardened
> With overexpansion guard (adjustable using end stop)
> Adjustment using hexagonal screw
> Ideal for series production as excessive expansion of rings is 48 41 J21
effectively prevented
Style 3
> DIN 5256 C, straight jaws
Style 4
> DIN 5256 D; 90° angled jaws

KNIPEX Circlip Pliers with overexpansion guard
For the suitable fitting of circlips in the industrial serial production. Particularly
manufacturers of sensitive, safety-relevant components (e.g. brakes or gears)
highly appreciate the compliance of DIN 471 and 472. The mounting of circlip
rings in this case requires pliers with overexpansion guard or a cone.
KNIPEX Circlip Pliers with overexpansion guard meet the requirements and
furthermore offer a superior durability.

EAN Size of bore Tips
Article No. 4003773- mm Style Pliers Handles Ø mm Ø mm g
48 31 J0 079552 140 8 – 13 0.9 105
48 31 J1 073864 140 3 grey atramentized with non-slip plastic coating 12 – 25 1.3 105
48 31 J2 073871 180 19 – 60 1.8 175
48 31 J3 073888 225 40 – 100 2.3 266
48 41 J01 079569 130 8 – 13 0.9 105
48 41 J11 079576 130 12 – 25 1.3 105
48 41 J21 080695 165 90° 4 grey atramentized with non-slip plastic coating 19 – 60 1.8 175
48 41 J31 079590 210 40 – 100 2.3 265

CIRCLIP PLIERS I 073
