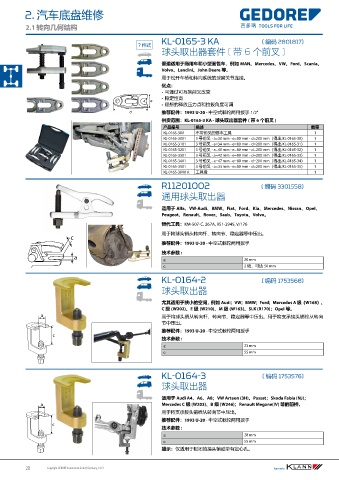

2. 汽车底盘维修
2. Axle Repair
2.1 转向几何结构
2.1 Steering Geometry
KL-0165-3 KA (Code 2801817)7)
KL-0165-3 KA
( 编码 280181
7 pcs.
7 件式
Ball Joint Extractor Set (with 6 Forks)
球头取出器套件 ( 带 6 个前叉 )
Universally applicable to HGV and light commercial vehicles/vans like MAN,
普遍适用于商用车和小型面包车，例如 MAN、Mercedes、VW、Ford、Scania、
Mercedes, VW, Ford, Scania, Volvo, Landini, John Deere etc.
Volvo、Landini、John Deere 等。
An indispensable tool set for the quick and easy separation of ball joint connections
用于松开车桥和转向系统的球窝关节连接。
in axle/suspension and steering systems.
优点：
Advantage:
• 可通过可互换前叉改变
• Variable through separator forks
• 稳定性高
• High stability
• 理想的释放压力点和拉拔角度可调
• Ideal release pressure point and adjustable tilting adjustment
推荐配件：1993 U-20 - 中空式棘轮两用扳手 1/2"
Recommended Accessory: 1993 U-20 Reversible Ratchet 1/2“
供货范围：KL-0165-3 KA - 球头取出器套件 ( 带 6 个前叉 )
Scope of Delivery: KL-0165-3 KA Ball Joint Extractor Set (with 6 Forks)
数量
描述
产品编号
Part No. Description Qty
不带前叉的基本工具
KL-0165-300
KL-0165-300 Base Tool without Fork 1 1
3 号前叉 - a=30 mm - e=80 mm - d=200 mm（得出 KL-0165-30）
KL-0165-3001
KL-0165-3001 Fork Size 3 - a=30mm - e=80mm - d=200mm (results KL-0165-30) 1 1
KL-0165-3101
3 号前叉 - a=34 mm - e=80 mm - d=200 mm（得出 KL-0165-31）
KL-0165-3101 Fork Size 3 - a=34mm - e=80mm - d=200mm (results KL-0165-31) 1 1
3 号前叉 - a=40 mm - e=80 mm - d=200 mm（得出 KL-0165-32）
KL-0165-3201
KL-0165-3201 Fork Size 3 - a=40mm - e=80mm - d=200mm (results KL-0165-32) 11
3 号前叉 - a=42 mm - e=80 mm - d=200 mm（得出 KL-0165-33）
KL-0165-3301
KL-0165-3301 Fork Size 3 - a=42mm - e=80mm - d=200mm (results KL-0165-33) 11
3 号前叉 - a=47 mm - e=80 mm - d=200 mm（得出 KL-0165-34）
KL-0165-3401 Fork Size 3 - a=47mm - e=80mm - d=200mm (results KL-0165-34) 11
KL-0165-3401
3 号前叉 - a=33 mm - e=80 mm - d=200 mm（得出 KL-0165-35）
KL-0165-3501
KL-0165-3501 Fork Size 3 - a=33mm - e=80mm - d=200mm (results KL-0165-35) 11
工具盒
KL-0165-3090 A
KL-0165-3090 A Plastic Storage Case 11
R11201002 (Code 3301558)8)
R11201002
( 编码 330155
通用球头取出器
Ball Joint Extractor (Universal)
Suitable for Alfa, VW-Audi, BMW, Fiat, Ford, Mercedes, Nissan, Opel/Vauxhall,
适用于 Alfa、VW-Audi、BMW、Fiat、Ford、Kia、Mercedes、Nissan、Opel、
Peugeot, Renault, Rover, Saab, Toyota, Volvo.
Peugeot、Renault、Rover、Saab、Toyota、Volvo。
Alternative tool: KM-507-C, 267A, 951-2945, V/176
替代工具：KM-507-C, 267A, 951-2945, V/176
Designed to extract ball joint pivot pins from the steering arm, steering knuckle, anti-
用于将球头销从转向杆、转向节、稳定器等中压出。
roll bar etc.
推荐配件：1993 U-20 - 中空式棘轮两用扳手
Recommended Accessory: 1993 U-20 Reversible ratchet
Technical Data:
技术参数 :
a: 20mm
a:
20 mm
c: 2-stage up to 50mm
2 级，可达 50 mm
c:
KL-0164-2 (Code 1753568)8)
( 编码 175356
球头取出器
Ball Joint Extractor
Ideal for use in narrow space conditions like on Audi, VW, BMW, Ford, Mercedes
尤其适用于狭小的空间，例如 Audi；VW；BMW；Ford；Mercedes A 级（W168）、
A-Class (W168), C-Class (W202), E-Class (W210), M-Class (W163), SLK (R170),
C 级 (W202)、E 级 (W210)、M 级 (W163)、SLK (R170)；Opel 等。
Opel/Vauxhall etc.
用于将球头销从转向杆、转向节、稳定器等中压出。用于将支承接头销栓从转向
Designed to extract the ball joint pivot pin from steering arms, steering knuckles, stabilisers
节中压出。
etc. Needed when extracting the suspension ball joint pivot pin from the steering knuckle.
推荐配件：1993 U-20 - 中空式棘轮两用扳手
Recommended Accessory: 1993 U-20 Reversible ratchet
技术参数 :
Technical Data:
a: 23 mm
a: 23mm
c: 55 mm
55mm
c:
Note: Only suitable for closed ball joint pivot pins or for those with centre bore hole.
KL-0164-3 (Code 1753576)6)
KL-0164-3
( 编码 175357
球头取出器
Ball Joint Extractor
Suitable for front axle on Audi A4, A6, A8; VW Arteon (3H), Passat; Škoda Fabia
适用于 Audi A4、A6、A8；VW Arteon (3H)、Passat；Skoda Fabia (NJ)；
(NJ); Mercedes C-Class (W203), B-Class (W246); Renault Megane (IV) etc.
Mercedes C 级 (W203)、B 级 (W246)；Renault Megane(IV) 等的前桥。
Designed to extract the suspension ball joint pivot pin from the steering knuckle.
用于将支承接头销栓从转向节中压出。
Recommended Accessory: 1993 U-20 Reversible ratchet
推荐配件：1993 U-20 - 中空式棘轮两用扳手
Technical Data:
技术参数 :
a: 28mm
a: 28 mm
c: 55mm
c: 55 mm
Note: Only suitable for closed ball joint pivots pins, and for those with centre hole.
提示：仅适用于封闭的接头销或带有定心孔。
