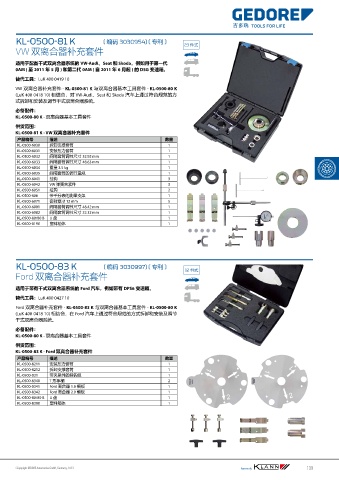

KL-0500-81 K (Code 3030954) (Patented) 23 pcs. KL-0500-81 K (LuK 400 0419 10)
( 编码 3030954) ( 专利 )
23 件式
VW 双离合器补充套件
Upgrade Tool Kit for Double Clutch, VW
适用于配备干式双离合器系统的 VW-Audi、Seat 和 Skoda，例如用于第一代
Applicable to VW-Audi, Seat and Škoda vehicles with dry double clutch systems.
0AM ( 至 2011 年 5 月 ) 和第二代 0AM ( 自 2011 年 6 月起 ) 的 DSG 变速箱。
For example: 1st generation DSG transmissions 0AM (until 5/2011) and 2nd
generation DSG transmissions 0AM (from 6/2011 onwards).
替代工具：LuK 400 0419 10
Alternative tool: LuK 400 0419 10
VW 双离合器补充套件 - KL-0500-81 K 与双离合器基本工具套件 - KL-0500-80 K
The KL-0500-81 K upgrade tool kit for double clutch is designed to be used in
(LuK 400 0418 10) 相结合，对 VW-Audi、Seat 和 Skoda 汽车上通过符合规范的方
conjunction with the KL-0500-80 K (LuK 400 0418 10) base toolkit, thus allowing for
式拆卸和安装及调节干式双离合器系统。
the professional dismantling, assembly and adjustment of dry double clutch systems
found on VW-Audi, Seat and Škoda vehicles.
必备配件：
KL-0500-80 K - 双离合器基本工具套件
Necessary Accessories:
KL-0500-81 K Base Tool Kit for Double Clutch
供货范围：
KL-0500-81 K - VW 双离合器补充套件
Scope of Delivery:
描述
产品编号
KL-0500-81 K Upgrade Tool Kit for Double Clutch, VW 数量
1
KL-0500-6030 拆卸支撑套筒 Qty
Part No.
Description
KL-0500-6031 安装压力套筒 1 1
KL-0500-6030
Support Sleeve for Disassembly
KL-0500-6032 间隔套筒调节尺寸 32.92 mm 1 1
KL-0500-6031
Pressure Sleeve for Assembly
KL-0500-6033 间隔套筒调节尺寸 48.63 mm 1
KL-0500-6032 Reference Gauge, 32.92mm 1
KL-0500-6034 重量 3.5 kg 1
KL-0500-6033 Reference Gauge, 48.63mm 1
KL-0500-6035 间隔套筒的调节量规 1
KL-0500-6034 Weight, 3.5kg 1
KL-0500-6041 挂钩 3
KL-0500-6035 Setting Gauge for Spacer Sleeves 1
KL-0500-6042 VW 弹簧夹紧件 3
KL-0500-6041 Hook 3
KL-0500-6051 拉钩 2
KL-0500-6042 Spring-Loaded Clamp for VW 3
KL-0500-606 带千分表的测量支架 1
KL-0500-6051 Pulling Hook 2
KL-0500-6071 密封塞 Ø 12 mm 5
KL-0500-606 Dial Gauge with Stand 1
KL-0500-6081 间隔套筒调节尺寸 48.42 mm 1
KL-0500-6071 Plug, Ø 12mm 5
KL-0500-6082 间隔套筒调节尺寸 32.12 mm 1
KL-0500-6081 Reference Gauge, 48.42mm 1
KL-0500-80/80 B U 盘 1
KL-0500-6082 Reference Gauge, 32.12mm 1
KL-0500-8190 塑料箱体 1
KL-0500-80/80 B USB stick 1
KL-0500-8190 Plastic Storage Case 1
KL-0500-83 K (Code 3030997) (Patented) 12 pcs. KL-0500-83 K (LuK 400 0427 10)
( 编码 3030997) ( 专利 )
12 件式
Ford 双离合器补充套件
Upgrade Tool Kit for Double Clutch, Ford
适用于带有干式双离合器系统的 Ford 汽车，例如带有 DPS6 变速箱。
Applicable to Ford vehicles with dry double clutch systems, e.g. with DPS6
transmissions.
替代工具：LuK 400 0427 10
Alternative tool: LuK 400 0427 10
Ford 双离合器补充套件 - KL-0500-83 K 与双离合器基本工具套件 - KL-0500-80 K
The KL-0500-83 K upgrade tool kit for double clutch is designed to be used in
(LuK 400 0418 10) 相结合，在 Ford 汽车上通过符合规范的方式拆卸和安装及调节
conjunction with the KL-0500-80 K (LuK 400 0418 10) base tool kit, thus allowing for
干式双离合器系统。
the professional dismantling, assembly and adjustment of dry double clutch systems
found on Ford vehicles.
必备配件：
KL-0500-80 K - 双离合器基本工具套件
Necessary Accessories:
KL-0500-81 K Base Tool Kit for Double Clutch
供货范围：
KL-0500-83 K - Ford 双离合器补充套件
Scope of Delivery:
描述
产品编号
KL-0500-83 K Upgrade Tool Kit for Double Clutch, Ford 数量
KL-0500-8211 安装压力套筒 Qty 1
Description
KL-0500-8212 拆卸支撑套筒 1 1
Pressure Sleeve, assembly
KL-0500-8211
KL-0500-831 带夹紧件的挂钩组 1 1
KL-0500-8212
Support Sleeve, disassembly
KL-0500-8340 T 形手柄 1 2
Set of Hooks with Clamp
KL-0500-831
KL-0500-8341 Ford 离合器 1.6 模板 2 1
T-Handle
KL-0500-8340
KL-0500-8342 Ford 离合器 2.0 模板 1 1
Setting Plate, Clutch, Ford 1.6 litre
KL-0500-8341
KL-0500-80/80 B U 盘 1 1
KL-0500-8342
Setting Plate, Clutch, Ford 2.0 litre
KL-0500-8390 塑料箱体 1
KL-0500-80/80 B USB stick 1
KL-0500-8390 Plastic Storage Case 1
