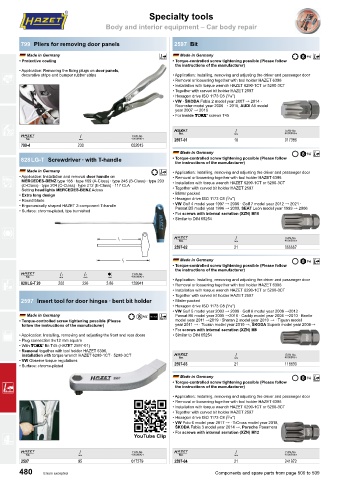

Page 482 - HAZET哈蔡特2024英文样本

Specialty tools Specialty tools

Body and interior equipment – Car body repair Body and interior equipment – Car body repair

799 Pliers for removing door panels 2597 Bit

Made in Germany A Made in Germany NH A
• Protective coating • Torque-controlled screw tightening possible (Please follow
the instructions of the manufacturer)
• Application: Removing the fixing plugs on door panels,
G decorative strips and bumper rubber strips • Application: Installing, removing and adjusting the driver and passenger door
• Removal or loosening together with tool holder HAZET 6396
• Installation with torque wrench HAZET 6290-1CT or 5290-3CT
• Together with curved bit holder HAZET 2597
5
• Hexagon drive ISO 1173 C8 ( ⁄16″)
• VW ∙ ŠKODA Fabia 2 model year 2007 → 2014 ∙
Roomster model year 2006 → 2015, AUDI A5 model
year 2007 → 2016
• For inside h screws T45
F 1 4 1 K 4

K
799-4 230 032013 2597-01 18 017386
Made in Germany PH A
828 LG-T Screwdriver ∙ with T-handle • Torque-controlled screw tightening possible (Please follow
the instructions of the manufacturer)
Made in Germany N A • Application: Installing, removing and adjusting the driver and passenger door
D • Application: Installation and removal door handle on • Removal or loosening together with tool holder HAZET 6396
MERCEDES-BENZ type 168 ∙ type 169 (A-Class) ∙ type 245 (B-Class) ∙ type 203
• Installation with torque wrench HAZET 6290-1CT or 5290-3CT
(C-Class) ∙ type 204 (C-Class) ∙ type 212 (E-Class) ∙ 117 CLA
Setting headlights MERCEDES-BENZ Actros • Together with curved bit holder HAZET 2597
• Extra long design • Blister packed 5
• Round blade • Hexagon drive ISO 1173 C8 ( ⁄16″)
• Ergonomically shaped HAZET 2-component T-handle • VW Golf 4 model year 1997 → 2006 ∙ Golf 7 model year 2012 → 2021 ∙
• Surface: chrome-plated, tips burnished Passat B5 model year 1996 → 2000, SEAT León model year 1999 → 2006
• For screws with internal serration (XZN) M10
• Similar to DIN 65254
R 1 K 4

2597-02 21 066667
Made in Germany PH A
• Torque-controlled screw tightening possible (Please follow
the instructions of the manufacturer)
1 M N r 4
C 828 LG-T 20 200 226 3.86 139941 • Application: Installing, removing and adjusting the driver and passenger door
• Removal or loosening together with tool holder HAZET 6396
• Installation with torque wrench HAZET 6290-1CT or 5290-3CT
• Together with curved bit holder HAZET 2597
2597 Insert tool for door hinges ∙ bent bit holder • Blister packed
5
• Hexagon drive ISO 1173 C8 ( ⁄16″)
• VW Golf 5 model year 2003 → 2008 ∙ Golf 6 model year 2008 →2012 ∙
Made in Germany NGA A Passat B6 model year 2005 →2010 ∙ Caddy model year 2004 →2010 ∙ Beetle
• Torque-controlled screw tightening possible (Please model year 2011 →2019 ∙ Sharan 2 model year 2010 → ∙ Tiguan model
follow the instructions of the manufacturer) year 2011 → ∙ Touran model year 2010 →, ŠKODA Superb model year 2008 →
• For screws with internal serration (XZN) M8
O • Application: Installing, removing and adjusting the front and rear doors • Similar to DIN 65254
• Plug connection 9 x 12 mm square
• With h Bit T45 (HAZET 2597-01)
• Removal together with tool holder HAZET 6396,
installation with torque wrench HAZET 6290-1CT ∙ 5290-3CT 1 K 4
• VW Observe torque regulations
• Surface: chrome-plated 2597-03 21 118830
Made in Germany PH A
A • Torque-controlled screw tightening possible (Please follow
the instructions of the manufacturer)
• Application: Installing, removing and adjusting the driver and passenger door
• Removal or loosening together with tool holder HAZET 6396
• Installation with torque wrench HAZET 6290-1CT or 5290-3CT
• Together with curved bit holder HAZET 2597
• Hexagon drive ISO 1173 C8 ( ⁄16″)
5
• VW Polo 6 model year 2017 → ∙ T-Cross model year 2018,
ŠKODA Fabia 3 model year 2014 →, Porsche Panamera
• For screws with internal serration (XZN) M12
YouTube Clip
U

1 K 4 1 K 4
2597 95 017379 2597-04 21 241972
480 Errors excepted Components and spare parts from page 500 to 509
