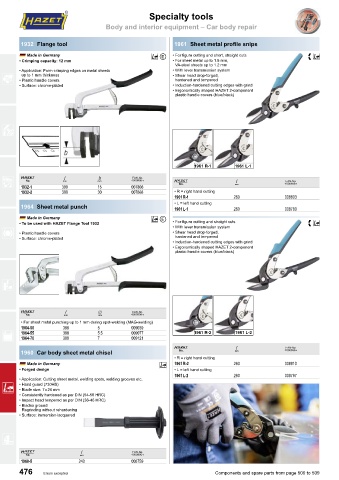

Page 478 - HAZET哈蔡特2024英文样本

Specialty tools Specialty tools

Body and interior equipment – Car body repair Body and interior equipment – Car body repair

1932 Flange tool 1961 Sheet metal profile snips

Made in Germany A/ • For figure cutting and short, straight cuts 4A
• Crimping capacity: 12 mm • For sheet metal up to 1.8 mm,
VA-steel sheets up to 1.2 mm
• Application: Form crimping edges on metal sheets • With lever transmission system
G • Plastic handle covers • Shear head drop-forged,
up to 1 mm thickness
hardened and tempered
• Surface: chrome-plated • Induction-hardened cutting edges with grind
• Ergonomically shaped HAZET 2-component
plastic handle covers (blue/black)

F

1961 R-1 1961 L-1

D 1 300 5 4 1 K 4
K
1932-1
007806
15
1932-2 300 30 007868 • R = right hand cutting
1961 R-1 260 008803
• L = left hand cutting
1964 Sheet metal punch 1961 L-1 260 008780
Made in Germany A/
• To be used with HAZET Flange Tool 1932 • For figure cutting and straight cuts 4A
• With lever transmission system
R • Plastic handle covers • Shear head drop-forged,
hardened and tempered
• Surface: chrome-plated
• Induction-hardened cutting edges with grind
• Ergonomically shaped HAZET 2-component
plastic handle covers (blue/black)

C

1 K t 4
• For sheet metal punching up to 1 mm during spot-welding (MAG-welding)
1964-50 300 5 009039
O 1964-55 300 5.5 009077 1961 R-2 1961 L-2
009121
7
1964-70
300

1 K 4
1960 Car body sheet metal chisel
• R = right hand cutting
Made in Germany A 1961 R-2 260 008810
• Forged design • L = left hand cutting
1961 L-2 260 008797
• Application: Cutting sheet metal, welding spots, welding grooves etc.
A • Hand guard (730HS)
• Blade size: 7 x 26 mm
• Consistently hardened as per DIN (54-58 HRC)
• Impact head tempered as per DIN (38-46 HRC)
• Blades ground
Regrinding without rehardening
• Surface: immersion-lacquered

U

1 K 4
1960-5 240 008759
476 Errors excepted Components and spare parts from page 500 to 509
