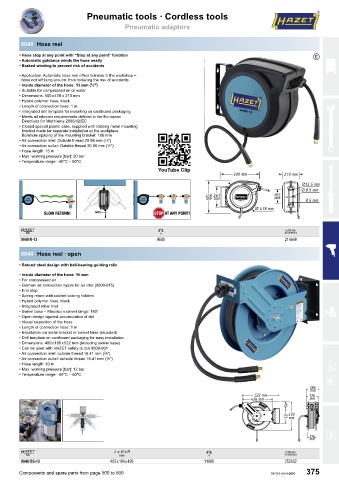

Pneumatic tools ∙ Cordless tools

Pneumatic adaptors

9040 Hose reel

• Hose stop at any point with “Stop at any point” function /
• Automatic guidance winds the hose neatly
• Braked winding to prevent risk of accidents
• Application: Automatic hose reel offers tidiness in the workshop –
hose not left lying around, thus reducing the risk of accidents
1
• Inside diameter of the hose: 13 mm ( ⁄2″)
• Suitable for compressed air or water
• Dimensions: 500 x 418 x 210 mm
• Hybrid polymer hose, black
• Length of connection hose: 1 m
• Integrated drill template for mounting on cardboard packaging
• Meets all relevant requirements defined in the European
Directives for Machinery 2006/42/EC
• Closed special plastic case, supplied with rotating metal mounting
bracket made for separate installation at the workplace
Borehole spacing of the mounting bracket: 186 mm
• Air connection inlet: Outside thread 20.96 mm ( ⁄2″)
1
• Air connection outlet: Outside thread 20.96 mm ( ⁄2″)
1
• Hose length: 15 m
• Max. working pressure [bar]: 20 bar
• Temperature range: -40°C – 80°C
YouTube Clip

1 5 4
9040 N-13 9500 214648

9040 Hose reel ∙ open

• Robust steel design with ball-bearing guiding rails
• Inside diameter of the hose: 10 mm
• For compressed air
• German air connection nipple for air inlet (9000-015)
• End stop
• Spring return with ratchet locking holders
• Hybrid polymer hose, black
• Integrated roller inlet
• Swivel base – Maximum swivel range: 180°
• Open design against accumulation of dirt
• Visual inspection of the hose
• Length of connection hose: 1 m
• Installation via metal bracket or swivel base (included)
• Drill template on cardboard packaging for easy installation
• Dimensions: 400 x 186 x 522 mm (Including swivel base)
• Can be used with HAZET safety clutch 9000-061
• Air connection inlet: outside thread 16.41 mm ( ⁄8″)
3
3
• Air connection outlet: outside thread 16.41 mm ( ⁄8″)
• Hose length: 20 m
• Max. working pressure [bar]: 12 bar
• Temperature range: -40°C – 60°C

1 L x W x H 5 4
mm
9040 OS-10 400 x 186 x 426 11680 252602

Components and spare parts from page 500 to 509 Errors excepted 375
