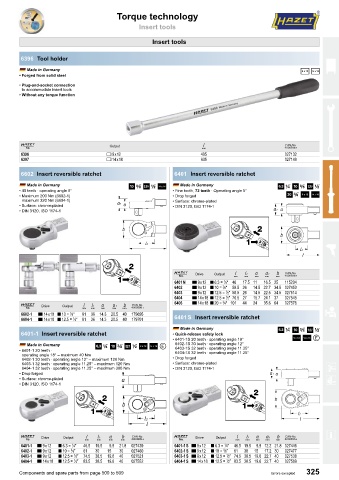

Page 327 - HAZET哈蔡特2024英文样本

Torque technology

Insert tools

Insert tools

6396 Tool holder

Made in Germany BD
• Forged from solid steel
• Plug-and-socket connection
to accommodate insert tools
• Without any torque function

1 Output K 4
6396 ) 9 x 12 405 027132
6397 ) 14 x 18 635 027149

6602 Insert reversible ratchet 6401 Insert reversible ratchet

Made in Germany 23C Made in Germany 123
• 40 teeth ∙ operating angle 9° • Fine tooth, 72 teeth ∙ Operating angle 5°
• Maximum 200 Nm (6602-1) • Drop forged 4AC
maximum 320 Nm (6604-1) • Surface: chrome-plated
• Surface: chrome-plated • DIN 3120, ISO 1174-1
• DIN 3120, ISO 1174-1

1 Drive Output K N 1 2 5 4
6401 N ( 9 x 12 i 6.3 = ⁄4″ 46 17.5 11 16.5 25 115204
1
6402 ( 9 x 12 i 10 = ⁄8″ 58.5 26 14.5 22.7 34.5 027453
3
1
6403 ( 9 x 12 i 12.5 = ⁄2″ 58.5 26 14.5 22.5 34.5 027514
1
6404 ( 14 x 18 i 12.5 = ⁄2″ 70.5 27 15.7 24.1 37 027545
1 Drive Output K N 1 2 5 4 6406 ( 14 x 18 i 20 = ⁄4″ 101 44 24 35.6 64 027576
3
6602-1 ( 14 x 18 i 10 = ⁄8″ 81 36 14.3 20.5 40 179695
3
1
6604-1 ( 14 x 18 i 12.5 = ⁄2″ 81 36 14.3 20.5 40 179701 6401 S Insert reversible ratchet
Made in Germany 123
6401-1 Insert reversible ratchet • Quick-release safety lock
• 6401-1S 20 teeth ∙ operating angle 18° AC /
Made in Germany 123AC / 6402-1S 30 teeth ∙ operating angle 12°
• 6401-1 20 teeth ∙ 6403-1S 32 teeth ∙ operating angle 11.25°
6404-1S 32 teeth ∙ operating angle 11.25°
operating angle 18° – maximum 40 Nm
6402-1 30 teeth ∙ operating angle 12° – maximum 120 Nm • Drop forged
6403-1 32 teeth ∙ operating angle 11.25° – maximum 120 Nm • Surface: chrome-plated
6404-1 32 teeth ∙ operating angle 11.25° – maximum 300 Nm • DIN 3120, ISO 1174-1
• Drop forged
• Surface: chrome-plated
• DIN 3120, ISO 1174-1

1 Drive Output K N 1 5 4 1 Drive Output K N 1 2 5 4
6401-1 ( 9 x 12 i 6.3 = ⁄4″ 46.5 19.5 9.9 21.8 027439 6401-1 S ( 9 x 12 i 6.3 = ⁄4″ 46.5 19.5 9.9 12.2 21.8 027446
1
1
3
3
6402-1 ( 9 x 12 i 10 = ⁄8″ 61 30 15 30 027460 6402-1 S ( 9 x 12 i 10 = ⁄8″ 61 30 15 17.2 30 027477
6403-1 ( 9 x 12 i 12.5 = ⁄2″ 74.5 38.5 19.6 40 027521 6403-1 S ( 9 x 12 i 12.5 = ⁄2″ 74.5 38.5 19.6 22.7 40 027538
1
1
6404-1 ( 14 x 18 i 12.5 = ⁄2″ 83.5 38.5 19.6 40 027552 6404-1 S ( 14 x 18 i 12.5 = ⁄2″ 83.5 38.5 19.6 22.7 40 027569
1
1
Components and spare parts from page 500 to 509 Errors excepted 325
