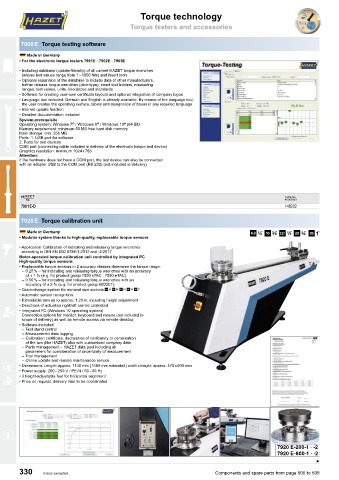

Page 332 - HAZET哈蔡特2024英文样本

Torque technology Torque technology

Torque testers and accessories Torque testers and accessories

7900 E Torque testing software

Made in Germany
• For the electronic torque testers 7901E ∙ 7902E ∙ 7903E
• Including database (update-friendly) of all current HAZET torque wrenches
(whose test values range from 1 – 1000 Nm) and insert tools
• Optional expansion of the database to include data of other manufacturers,
further release torque wrenches (click-type), insert tool holders, measuring
ranges, test values, units, tolerances and standards
• Software for creating user-own certificate layouts and optional integration of company logos
• Language tool included. German and English is already available. By means of the language tool,
the user creates the operating surface, tables and designation of boxes in any required language
• Internet update function
• Detailed documentation included
System prerequisite
®
Operating system: Windows 7 / Windows 8 / Windows 10 (64 Bit)
®
®
Memory requirement: minimum 50 MB free hard disk memory
Main storage: min. 256 MB
Ports: 1. USB port for software
2. Ports for test devices
COM port (connecting cable included in delivery of the electronic torque test device)
Graphics resolution: minimum 1024 x 768
Attention:
If the hardware does not have a COM port, the test device can also be connected
with an adapter USB to the COM port (RS 232) (not included in delivery)

1 4
7901 E-D 148202

7920 E Torque calibration unit
Made in Germany 12345
• Modular system thanks to high-quality, replaceable torque sensors
• Application: Calibration of indicating and releasing torque wrenches
according to DIN EN ISO 6789-1:2017 and -2:2017
Motor-operated torque calibration unit controlled by integrated PC
High-quality torque sensors:
• Replaceable torque sensors in 2 accuracy classes determine the torque range:
– 0.25 % – for indicating and releasing torque wrenches with an accuracy
of ± 1 % (e.g. for product group 7000 sTAC ∙ 7000 eTAC)
– 0.50 % – for indicating and releasing torque wrenches with an
accuracy of ± 2 % (e.g. for product group 6000CT)
• Quick-change system for nominal size sockets 1 2 3 4 5
• Automatic sensor recognition
• Extendable arm up to approx. 1.20 m, including height adjustment
• Directions of actuation right/left can be calibrated
• Integrated PC (Windows 10 operating system)
Connection options for monitor, keyboard and mouse (not included in
scope of delivery) as well as remote access via remote desktop
• Software included
– Test stand control
– Measurement data logging
– Calibration certificate, declaration of conformity or combination
of the two (like HAZET) also with customised company data
– Parts management – HAZET data pool including all
parameters for consideration of uncertainty of measurement
– Tool management
– Online update and remote maintenance service
• Dimensions Length: approx. 1140 mm (1680 mm extended) width x height: approx. 570 x 600 mm
• Power supply: 200 – 250 V / PE-N / 50 – 60 Hz
• 3 height-adjustable feet for horizontal alignment
• Price on request, delivery time to be coordinated

7920 E-200-1 · -2
7920 E-800-1 · -2
B
330 Errors excepted Components and spare parts from page 500 to 509
