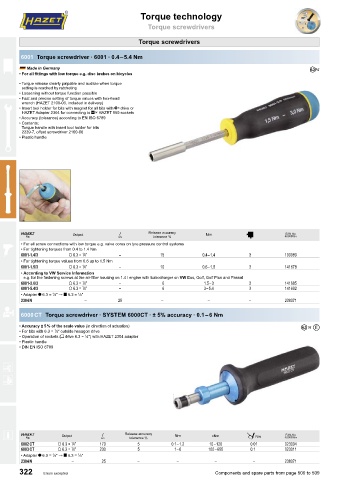

Page 324 - HAZET哈蔡特2024英文样本

Torque technology Torque technology

Torque screwdrivers SYSTEM 6300 CT

Torque screwdrivers

6001 Torque screwdriver ∙ 6001 ∙ 0.4 – 5.4 Nm
Made in Germany E
• For all fittings with low torque e.g. disc brakes on bicycles
• Torque release clearly palpable and audible when torque
setting is reached by ratcheting
• Loosening without torque function possible
• Fast and precise setting of torque values with hex-head
wrench (HAZET 2100-06, included in delivery)
• Insert tool holder for bits with magnet for all bits with F drive or
HAZET Adapter 2304 for connecting to 1 HAZET 850 sockets
• Accuracy (tolerance) according to EN ISO 6789
• Contents:
Torque handle with insert tool holder for bits
2239-7, offset screwdriver 2100-06
• Plastic handle

1 Output K Release accuracy ! è 4
tolerance %
• For all screw connections with low torque e.g. valve cores on tyre pressure control systems
• For tightening torques from 0.4 to 1.4 Nm
6001-1.4/3 h 6.3 = ⁄4″ – 15 0.4 – 1.4 3 190980
1
• For tightening torque values from 0.6 up to 1.5 Nm
6001-1.5/3 h 6.3 = ⁄4″ – 10 0.6 – 1.5 3 141678
1
• According to VW Service Information
e.g. for the fastening screws at the air-filter housing on 1.4 l engine with turbocharger on VW Eos, Golf, Golf Plus and Passat
6001-3.0/3 h 6.3 = ⁄4″ – 6 1.5 – 3 3 141685
1
6001-5.4/3 h 6.3 = ⁄4″ – 6 3 – 5.4 3 141692
1
• Adapter g 6.3 = ⁄4″ → i 6.3 = ⁄4″
1
1
2304 N – 25 – – – 238071
6000 CT Torque screwdriver ∙ SYSTEM 6000CT ∙ ± 5% accuracy ∙ 0.1 – 6 Nm
• Accuracy ± 5 % of the scale value (in direction of actuation) E /
1
• For bits with 6.3 = ⁄4″ outside hexagon drive
• Operation of sockets (j drive 6.3 = ⁄4″) with HAZET 2304 adapter
1
• Plastic handle
• DIN EN ISO 6789

1 Output K Release accuracy ! cNm Å Nm 4
tolerance %
6002 CT h 6.3 = ⁄4″ 170 5 0.1 – 1.2 10 – 120 0.01 023004
1
6003 CT h 6.3 = ⁄4″ 230 5 1 – 6 100 – 600 0.1 023011
1
1
• Adapter g 6.3 = ⁄4″ → i 6.3 = ⁄4″
1
2304 N – 25 – – – – 238071
322 Errors excepted Components and spare parts from page 500 to 509
