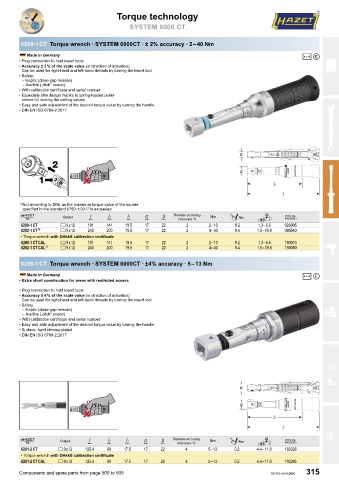

Torque technology

SYSTEM 6000 CT

6200-1 CT Torque wrench ∙ SYSTEM 6000CT ∙ ± 2% accuracy ∙ 2 – 40 Nm

Made in Germany B /
• Plug connection to hold insert tools
• Accuracy ± 2 % of the scale value (in direction of actuation)
Can be used for right-hand and left-hand threads by turning the insert tool
• Safety:
– Haptic (close-gap release)
– Audible („click“ sound)
• With calibration certificate and serial number
• Especially slim design thanks to spring-loaded puller
sleeve for locking the setting values
• Easy and safe adjustment of the desired torque value by turning the handle
• DIN EN ISO 6789-2:2017

1) Not according to DIN, as the maximum torque value of the square
specified in the standard 6789-1:2017 is exceeded
1 Output K M N 1 5 Release accuracy ! Å Nm # 4
tolerance %
6280-1 CT ) 9 x 12 181 141 19.5 17 22 2 2 – 10 0.2 1.3 – 6.6 026005
6282-1 CT 1) ) 9 x 12 240 200 19.5 17 22 2 4 – 40 0.4 1.9 – 19.8 080540
• Torque wrench with DAkkS calibration certificate
6280-1 CT CAL ) 9 x 12 181 141 19.5 17 22 2 2 – 10 0.2 1.3 – 6.6 193073
6282-1 CT CAL 1) ) 9 x 12 240 200 19.5 17 22 2 4 – 40 0.4 1.9 – 19.8 193080

6200-1 CT Torque wrench ∙ SYSTEM 6000CT ∙ ±4% accuracy ∙ 5 – 13 Nm

Made in Germany B /
• Extra short construction for areas with restricted access
• Plug connection to hold insert tools
• Accuracy ± 4 % of the scale value (in direction of actuation)
Can be used for right-hand and left-hand threads by turning the insert tool
• Safety:
– Haptic (close-gap release)
– Audible („click“ sound)
• With calibration certificate and serial number
• Easy and safe adjustment of the desired torque value by turning the handle
• Surface: hard chrome plated
• DIN EN ISO 6789-2:2017

1 Output K M N 1 5 Release accuracy ! Å Nm # 4
tolerance %
6281-2 CT ) 9 x 12 125.4 99 17.5 17 22 4 5 – 13 0.2 4.4 – 11.8 183326
• Torque wrench with DAkkS calibration certificate
6281-2 CT CAL ) 9 x 12 125.4 99 17.5 17 22 4 5 – 13 0.2 4.4 – 11.8 193295

Components and spare parts from page 500 to 509 Errors excepted 315
