Torque technology Torque technology

SYSTEM 6000 CT SYSTEM 6000 CT

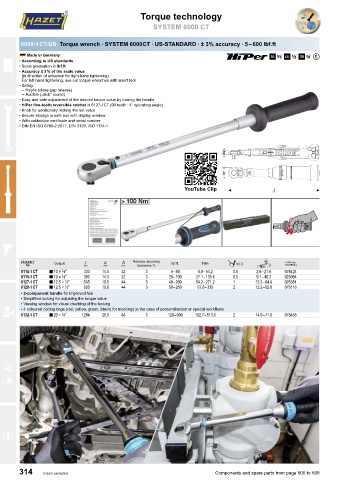

6000-1 CT-US Torque wrench ∙ SYSTEM 6000CT ∙ US-STANDARD ∙ ± 3% accuracy ∙ 5 – 600 lbf.ft

Made in Germany 234 /
• According to US standards
• Scale graduation in lbf.ft
• Accuracy ± 3 % of the scale value
(in direction of actuation for right-hand tightening)
For left-hand tightening, use our torque wrenches with insert tool
• Safety:
– Haptic (close-gap release)
– Audible („click“ sound)
• Easy and safe adjustment of the desired torque value by turning the handle
• HiPer fine-tooth reversible ratchet in 6127-1CT (90 teeth ∙ 4° operating angle)
• Knob for additionally locking the set value
• Secure storage in safe box with display window
• With calibration certificate and serial number
• DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1

YouTube Clip

1 Output K 1 5 Release accuracy lbf.ft. ! Å lbf.ft # 4
tolerance %
3
6114-1 CT i 10 = ⁄8″ 333 14.5 32 3 5 – 40 6.8 – 54.2 0.5 2.6 – 21.8 078424
6115-1 CT i 10 = ⁄8″ 390 14.5 32 3 20 – 100 27.1 – 135.6 0.5 9.1 – 48.2 025084
3
6127-1 CT i 12.5 = ⁄2″ 545 19.6 44 3 40 – 200 54.2 – 271.2 1 12.3 – 64.6 025381
1
1
6128-1 CT i 12.5 = ⁄2″ 660 19.6 44 3 50 – 250 67.8 – 339 2 12.2 – 62.6 076116
• 2-component handle for improved feel
• Simplified locking for adjusting the torque value
• Viewing window for visual checking of the locking
• 4 coloured coding rings (red, yellow, green, black) for markings in the case of personalisation or special workflows
3
6132-1 CT i 20 = ⁄4″ 1284 28.5 64 3 120 – 600 162.7 – 813.5 2 14.0 – 71.6 078455

314 Errors excepted Components and spare parts from page 500 to 509
