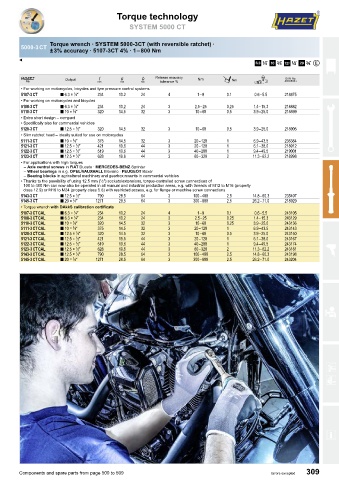

Torque technology

SYSTEM 5000 CT

5000-3 CT Torque wrench ∙ SYSTEM 5000-3CT (with reversible ratchet) ∙
± 3% accuracy ∙ 5107-3CT 4% ∙ 1 – 800 Nm
C
1234 /

1 Output K 1 5 Release accuracy ! Å Nm # 4
tolerance %
• For working on motorcycles, bicycles and tyre pressure control systems
5107-3 CT i 6.3 = ⁄4″ 234 10.2 24 4 1 – 9 0.1 0.6 – 5.5 218875
1
• For working on motorcycles and bicycles
1
5108-3 CT i 6.3 = ⁄4″ 234 10.2 24 3 2.5 – 25 0.25 1.4 – 15.3 218882
5110-3 CT i 10 = ⁄8″ 320 14.5 32 3 10 – 60 0.5 3.9 – 25.0 218899
3
• Extra short design – compact
• Specifically also for commercial vehicles
5120-3 CT i 12.5 = ⁄2″ 320 14.5 32 3 10 – 60 0.5 3.9 – 25.0 218905
1
• Slim ratchet head – ideally suited for use on motorcycles
5111-3 CT i 10 = ⁄8″ 375 14.5 32 3 20 – 120 1 6.9 – 43.5 235384
3
1
5121-3 CT i 12.5 = ⁄2″ 421 19.6 44 3 20 – 120 1 6.1 – 38.0 218912
5122-3 CT i 12.5 = ⁄2″ 519 19.6 44 3 40 – 200 1 9.4 – 49.5 219001
1
1
5123-3 CT i 12.5 = ⁄2″ 628 19.6 44 3 60 – 320 2 11.3 – 62.2 218998
• For applications with high torques
– Axle central screws in FIAT Ducato ∙ MERCEDES-BENZ Sprinter
– Wheel bearings in e.g. OPEL/VAUXHALL Movano ∙ PEUGEOT Boxer
– Bearing blocks in agricultural machinery and gearbox mounts in commercial vehicles
• Thanks to the possibility of using 12.5 mm ( ⁄2″) sockets/extensions, torque-controlled screw connections of
1
100 to 400 Nm can now also be operated in all manual and industrial production areas, e.g. with threads of M12 to M16 (property
class 12.9) or M16 to M24 (property class 5.6) with restricted access, e.g. for flange or machine screw connections
5143-3 CT i 12.5 = ⁄2″ 790 28.5 64 3 100 – 400 2.5 14.8 – 60.3 235407
1
3
5145-3 CT i 20 = ⁄4″ 1271 28.5 64 3 300 – 800 2.5 26.2 – 71.0 218929
• Torque wrench with DAkkS calibration certificate
1
5107-3 CT CAL i 6.3 = ⁄4″ 234 10.2 24 4 1 – 9 0.1 0.6 – 5.5 243105
5108-3 CT CAL i 6.3 = ⁄4″ 234 10.2 24 3 2.5 – 25 0.25 1.4 – 15.3 243129
1
5110-3 CT CAL i 10 = ⁄8″ 320 14.5 32 3 10 – 60 0.25 3.9 – 25.0 243136
3
5111-3 CT CAL i 10 = ⁄8″ 375 14.5 32 3 20 – 120 1 6.9 – 43.5 243143
3
1
5120-3 CT CAL i 12.5 = ⁄2″ 320 14.5 32 3 10 – 60 0.5 3.9 – 25.0 243150
1
5121-3 CT CAL i 12.5 = ⁄2″ 421 19.6 44 3 20 – 120 1 6.1 – 38.0 243167
1
5122-3 CT CAL i 12.5 = ⁄2″ 519 19.6 44 3 40 – 200 1 9.4 – 49.5 243174
5123-3 CT CAL i 12.5 = ⁄2″ 628 19.6 44 3 60 – 320 2 11.3 – 62.2 243181
1
5143-3 CT CAL i 12.5 = ⁄2″ 790 28.5 64 3 100 – 400 2.5 14.8 – 60.3 243198
1
5145-3 CT CAL i 20 = ⁄4″ 1271 28.5 64 3 300 – 800 2.5 26.2 – 71.0 243204
3

Components and spare parts from page 500 to 509 Errors excepted 309
