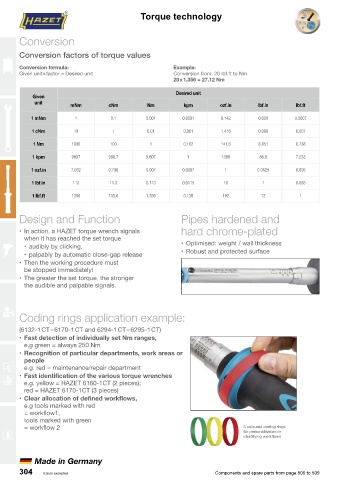

Torque technology Torque technology

Conversion

Conversion factors of torque values

Conversion formula: Example:
Given unit x factor = Desired unit Conversion from: 20 lbf.ft to Nm
20 x 1.356 = 27.12 Nm

Desired unit
Given
unit
mNm cNm Nm kpm ozf.in lbf.in lbf.ft

1 mNm 1 0.1 0.001 0.0001 0.142 0.009 0.0007
1 cNm 10 1 0.01 0.001 1.416 0.088 0.007

1 Nm 1000 100 1 0.102 141.6 8.851 0.738

1 kpm 9807 980.7 9.807 1 1389 86.8 7.233

1 ozf.in 7.062 0.706 0.007 0.0007 1 0.0625 0.005

1 lbf.in 113 11.3 0.113 0.0115 16 1 0.083
1 lbf.ft 1356 135.6 1.356 0.138 192 12 1

Design and Function Pipes hardened and

hard chrome-plated
• In action, a HAZET torque wrench signals
when it has reached the set torque
• Optimised: weight / wall thickness
• audibly by clicking,
• Robust and protected surface
• palpably by automatic close-gap release
• Then the working procedure must
be stopped immediately!
• The greater the set torque, the stronger
the audible and palpable signals.

Coding rings application example:

(6132-1 CT – 6170-1 CT and 6294-1 CT – 6295-1 CT)
• Fast detection of individually set Nm ranges,
e.g green = always 250 Nm
• Recognition of particular departments, work areas or
people
e.g. red = maintenance/repair department
• Fast identification of the various torque wrenches
e.g. yellow = HAZET 6160-1CT (2 pieces);
red = HAZET 6170-1CT (3 pieces)
• Clear allocation of defined workflows,
e.g tools marked with red
= workflow1,
tools marked with green
= workflow 2 3 coloured coding rings
for personalisation or
identifying workflows

Made in Germany
