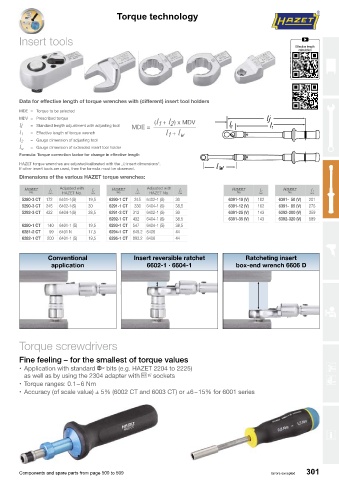

Torque technology

Insert tools

Effective length
calculation

Data for effective length of torque wrenches with (different) insert tool holders
MDE = Torque to be selected
MDV = Prescribed torque
1
2
(l + l ) x MDV
lj = Standard length adjustment with adjusting tool MDE =
1
l = Effective length of torque wrench l + l w
1
2
l = Gauge dimension of adjusting tool
w
l = Gauge dimension of extended insert tool holder
Formula: Torque correction factor for change in effective length
HAZET torque wrenches are adjusted/calibrated with the „l2 insert dimensions“.
If other insert tools are used, then the formula must be observed.
Dimensions of the various HAZET torque wrenches:
Adjusted with Adjusted with
M N M N M M
HAZET No. HAZET No.
5280-3 CT 172 6401-1(S) 19,5 6290-1 CT 245 6402-1 (S) 30 6391-10 (V) 102 6391- 50 (V) 201
5290-3 CT 245 6402-1(S) 30 6291-1 CT 330 6404-1 (S) 38,5 6391-12 (V) 102 6391- 85 (V) 276
5292-3 CT 422 6404-1(S) 38,5 6291-2 CT 312.0 6402-1 (S) 30 6391-25 (V) 143 6392-200 (V) 359
6292-1 CT 432.0 6404-1 (S) 38,5 6391-35 (V) 143 6392-320 (V) 589
6280-1 CT 140 6401-1 (S) 19,5 6293-1 CT 547.0 6404-1 (S) 38,5
6281-2 CT 99 6401 N 17,5 6294-1 CT 649.2 6406 44
6282-1 CT 200 6401-1 (S) 19,5 6295-1 CT 893.2 6406 44

Conventional Insert reversible ratchet Ratcheting insert
application 6602-1 ∙ 6604-1 box-end wrench 6606 D

Torque screwdrivers

Fine feeling – for the smallest of torque values

• Application with standard F bits (e.g. HAZET 2204 to 2225)
as well as by using the 2304 adapter with 6 sockets
• Torque ranges: 0.1 – 6 Nm
• Accuracy (of scale value) ± 5% (6002 CT and 6003 CT) or ±6 – 15% for 6001 series

Components and spare parts from page 500 to 509 Errors excepted 301
