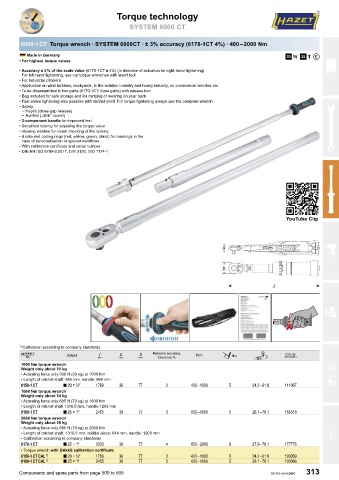

Torque technology

SYSTEM 6000 CT

6000-1 CT Torque wrench ∙ SYSTEM 6000CT ∙ ± 3% accuracy (6170-1CT 4%) ∙ 400 – 2000 Nm

Made in Germany 45 /
• For highest torque values
• Accuracy ± 3 % of the scale value (6170-1CT ± 4%) (in direction of actuation for right-hand tightening)
For left-hand tightening, use our torque wrenches with insert tool
• For industrial climbers
• Application on wind turbines, dockyards, in the aviation industry and heavy industry, on commercial vehicles etc.
• To be disassembled in two parts (6170-1CT: three parts) with release tool
• Bag included for safe storage and for carrying or wearing on your back
• Fast screw tightening also possible with ratchet shaft. For torque tightening always use the complete wrench
• Safety:
– Haptic (close-gap release)
– Audible („click“ sound)
• 2-component handle for improved feel
• Simplified locking for adjusting the torque value
• Viewing window for visual checking of the locking
• 4 coloured coding rings (red, yellow, green, black) for markings in the
case of personalisation or special workflows
• With calibration certificate and serial number
• DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1

YouTube Clip

1) Calibration according to company standards
1 Output K 1 5 Release accuracy ! Å Nm # 4
tolerance %
1000 Nm torque wrench
Weight only about 10 kg
• Actuating force only 590 N (60 kg) at 1000 Nm
• Length of ratchet shaft: 885 mm, handle: 969 mm
6150-1 CT i 20 = ⁄4″ 1789 36 77 3 400 – 1000 5 24.2 – 61.0 141067
3
1600 Nm torque wrench
Weight only about 14 kg
• Actuating force only 685 N (70 kg) at 1600 Nm
• Length of ratchet shaft 1316.5 mm, handle 1203 mm
6160-1 CT i 25 = 1″ 2455 36 77 3 600 – 1600 5 26.1 – 70.1 155316
2000 Nm torque wrench
Weight only about 18 kg
• Actuating force only 685 N (70 kg) at 2000 Nm
• Length of ratchet shaft: 1316.5 mm, middle piece: 644 mm, handle: 1203 mm
• Calibration according to company standards
6170-1 CT i 25 = 1″ 3033 36 77 4 800 – 2000 6 27.9 – 70.1 177776
• Torque wrench with DAkkS calibration certificate
6150-1 CT CAL 1) i 20 = ⁄4″ 1789 36 77 3 400 – 1000 5 24.2 – 61.0 193059
3
6160-1 CT CAL 1) i 25 = 1″ 2455 36 77 3 600 – 1600 5 26.1 – 70.1 193066
Components and spare parts from page 500 to 509 Errors excepted 313
