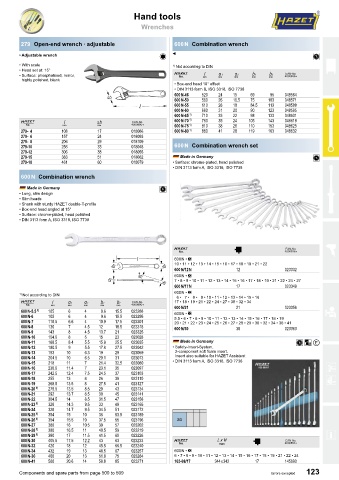

P. 125
Hand tools
Wrenches
279 Open-end wrench ∙ adjustable 600 N Combination wrench
• Adjustable wrench C
c %
• With scale 1) Not according to DIN
• Head set at: 15° 1
• Surface: phosphatised, mirror, K 2 3 6 7 4
highly polished, blank
• Box-end head 10° offset
• DIN 3113 form B, ISO 3318, ISO 7738
600 N-46 520 24 15 69 95 048564
600 N-50 560 26 16.5 75 103 048571
600 N-55 610 28 18 84.5 113 048588
600 N-60 660 31 20 90 123 048595
600 N-65 1) 710 33 22 98 133 048601
1 K U 4 600 N-70 1) 760 35 24 105 143 048618
110
26
1)
048625
153
38
600 N-75
810
279- 4 108 17 018086 600 N-80 1) 860 41 28 119 163 048632
279- 6 157 24 018093
279- 8 206 29 018109
279-10 256 33 018048 600 N Combination wrench set
279-12 306 38 018055
279-15 383 51 018062 Made in Germany %
279-18 461 60 018079 • Surface: chrome-plated, head polished
• DIN 3113 form A, ISO 3318, ISO 7738
600 N Combination wrench
Made in Germany %
• Long, slim design
• Slim heads
• Shank with sturdy HAZET double‑T‑profile
• Box-end head angled at 15°
• Surface: chrome-plated, head polished
• DIN 3113 form A, ISO 3318, ISO 7738
1 è 4
600 N • %
10 • 11 • 12 • 13 • 14 • 15 • 16 • 17 • 18 • 19 • 21 • 22
600 N/12 N 12 023332
600 N • %
7 • 8 • 9 • 10 • 11 • 12 • 13 • 14 • 15 • 16 • 17 • 18 • 19 • 21 • 22 • 24 • 27
600 N/17 N 17 023349
1) Not according to DIN 600 N • %
6 • 7 • 8 • 9 • 10 • 11 • 12 • 13 • 14 • 15 • 16
1 K 2 3 6 7 4 17 • 18 • 19 • 21 • 22 • 24 • 27 • 30 • 32 • 34
600 N-5.5 1) 105 6 4 9.6 15.5 023288 600 N/21 21 023356
600 N-6 105 6 4 9.6 15.5 023295 600 N • %
5.5 • 6 • 7 • 8 • 9 • 10 • 11 • 12 • 13 • 14 • 15 • 16 • 17 • 18 • 19
600 N-7 118.5 6.6 4 10.9 17.5 023301 20 • 21 • 22 • 23 • 24 • 25 • 26 • 27 • 28 • 29 • 30 • 32 • 34 • 36 • 41
600 N-8 130 7 4.5 12 18.5 023318 600 N/30 30 023363
600 N-9 143 8 4.5 13.7 21 023325
600 N-10 154.5 8 5 15 23 023028
600 N-11 168.5 8.4 5.5 15.9 25.5 023035 Made in Germany %S/
600 N-12 180.5 9 5.5 17.8 27.5 023042 • Safety-Insert-System,
600 N-13 193 10 6.3 19 29 023059 2-component soft foam insert.
600 N-14 204.5 10 6.5 20.1 31 023073 Insert also suitable for HAZET Assistent
600 N-15 218 11 7 21.4 32.5 023080 • DIN 3113 form A, ISO 3318, ISO 7738
600 N-16 230.5 11.4 7 23.1 35 023097
600 N-17 242.5 12.4 7.5 24.5 37 023103
600 N-18 255 13 8 26 39 023110
600 N-19 268.5 13.5 8 27.5 41 023127
600 N-20 1) 279.5 13.5 8.5 29 43 023134
600 N-21 292 13.7 8.5 30 45 023141
600 N-22 304.5 14 8.5 31.5 47 023158
600 N-23 1) 328 14.3 9.5 33 49 023165
600 N-24 328 14.7 9.5 34.5 51 023172
600 N-25 1) 354 15 10 36 53.5 023189
600 N-26 1) 354 15.5 10 37.5 55 023196
600 N-27 380 16 10.5 39 57 023202
600 N-28 1) 380 16.5 11 40.5 59 023219
600 N-29 1) 380 17 11.5 41.5 60 023226
600 N-30 405.5 17.5 12.2 43 63 023233 1 L x W è 4
600 N-32 420 18 12 45.5 66.5 023240 mm
600 N-34 432 19 13 48.5 67 023257 600 N • %
600 N-36 460 20 13 51.8 75 023264 6 • 7 • 8 • 9 • 10 • 11 • 12 • 13 • 14 • 15 • 16 • 17 • 18 • 19 • 21 • 22 • 24
600 N-41 500 20.6 14 58.8 85 023271 163-98/17 344 x 342 17 145690
Components and spare parts from page 500 to 509 Errors excepted 123
