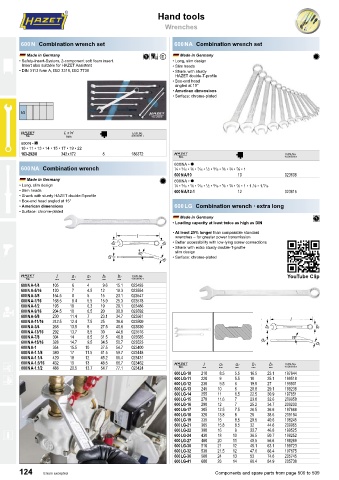

P. 126
Hand tools Hand tools
Wrenches Wrenches
600 N Combination wrench set 600 NA Combination wrench set
Made in Germany %S/ Made in Germany r
• Safety-Insert-System, 2-component soft foam insert. • Long, slim design
Insert also suitable for HAZET Assistent • Slim heads
• DIN 3113 form A, ISO 3318, ISO 7738 • Shank with sturdy
HAZET double-T-profile
• Box-end head
angled at 15°
• American dimensions
• Surface: chrome-plated
1 L x W è 4
mm
600 N • %
10 • 11 • 13 • 14 • 15 • 17 • 19 • 22
163-292/8 342 x 172 8 186372 1 è 4
600 NA • r
600 NA Combination wrench 1 ⁄4 • ⁄16 • ⁄8 • ⁄16 • ⁄2 • ⁄16 • ⁄8 • ⁄4 • ⁄8 • 1
9
7
1
5
3
7
5
3
600 N A/10 10 023608
Made in Germany r 600 NA • r
• Long, slim design 1 ⁄4 • ⁄16 • ⁄8 • ⁄16 • ⁄2 • ⁄16 • ⁄8 • ⁄4 • ⁄8 • 1 • 1. ⁄8 • 1. ⁄16
5
3
5
7
5
1
7
3
9
1
• Slim heads 600 N A/12-1 12 023615
• Shank with sturdy HAZET double‑T‑profile
• Box-end head angled at 15°
• American dimensions 600 LG Combination wrench ∙ extra long
• Surface: chrome-plated
Made in Germany %
• Loading capacity at least twice as high as DIN
• At least 25% longer than comparable standard
wrenches – for greater power transmission
• Better accessibility with low‑lying screw connections
• Shank with extra sturdy double‑T‑profile
slim design
• Surface: chrome-plated
1 K 2 3 6 7 4 YouTube Clip
600 N A-1/4 105 6 4 9.6 15.1 023493
600 N A-5/16 130 7 4.5 12 18.3 023554
600 N A-3/8 154.5 8 5 15 23.1 023547
600 N A-7/16 168.5 8.4 5.5 15.9 25.3 023578
600 N A-1/2 193 10 6.3 19 29.1 023486
600 N A-9/16 204.5 10 6.5 20 30.9 023592
600 N A-5/8 230 11.4 7 23.1 34.7 023561
600 N A-11/16 242.5 12.4 7.5 25 36.6 023509
600 N A-3/4 268 13.5 8 27.5 40.6 023530
600 N A-13/16 292 13.7 8.5 30 44.6 023516
600 N A-7/8 304 14 8.5 31.5 46.8 023585
600 N A-15/16 328 14.7 9.5 34.5 50.7 023523
600 N A-1 354 15.5 10 37.5 54.7 023400
600 N A-1.1/8 380 17 11.5 41.5 59.7 023448
600 N A-1.1/4 420 18 12 45.2 66.4 023431
600 N A-1.5/16 432 19 13 48.5 66.7 023462 1 4
600 N A-1.1/2 486 20.5 13.7 54.7 77.1 023424 K 2 3 6 7
600 LG-10 210 8.5 5.5 16.5 23.1 197644
600 LG-11 220 9 5.5 18 25.1 199518
600 LG-12 230 9.5 6 19.5 27 199501
600 LG-13 245 10 6 20.8 29.1 198238
600 LG-14 255 11 6.5 22.5 30.9 197651
600 LG-15 270 11.6 7 23.8 32.6 209958
600 LG-16 290 12 7 25.2 34.7 209200
600 LG-17 305 12.5 7.5 26.5 36.6 197668
600 LG-18 320 13.8 8 28 38.6 209194
600 LG-19 335 15 8.5 29.5 40.6 198245
600 LG-21 365 15.8 8.5 32 44.6 209965
600 LG-22 380 16 9 33.7 46.8 199525
600 LG-24 430 18 10 36.5 50.7 198252
600 LG-27 480 20 11 40.5 56.6 198269
600 LG-30 510 21 12 45.1 63.1 199723
600 LG-32 530 21.5 12 47.6 66.4 197675
600 LG-36 580 24 13 53 74.6 205745
600 LG-41 600 26 14 60.4 84.9 205738
124 Errors excepted Components and spare parts from page 500 to 509
