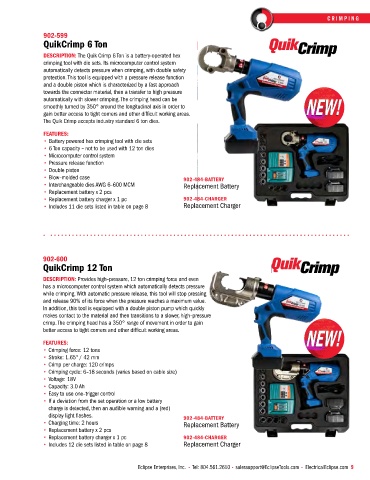

CRIMPING

902-599
QuikCrimp 6 Ton

DESCRIPTION: The Quik Crimp 6 Ton is a battery‑operated hex
crimping tool with die sets. Its microcomputer control system
automatically detects pressure when crimping, with double safety
protection. This tool is equipped with a pressure release function
and a double piston which is characterized by a fast approach
towards the connector material, then a transfer to high pressure
automatically with slower crimping. The crimping head can be
smoothly turned by 350° around the longitudinal axis in order to
gain better access to tight corners and other difficult working areas.
The Quik Crimp accepts industry standard 6 ton dies.

FEATURES:
• Battery powered hex crimping tool with die sets
• 6 Ton capacity – not to be used with 12 ton dies
• Microcomputer control system
• Pressure release function
• Double piston
• Blow–molded case 902-484-BATTERY
• Interchangeable dies AWG 6–600 MCM Replacement Battery
• Replacement battery x 2 pcs
• Replacement battery charger x 1 pc 902-484-CHARGER
• Includes 11 die sets listed in table on page 8 Replacement Charger

902-600
QuikCrimp 12 Ton

DESCRIPTION: Provides high–pressure, 12 ton crimping force and even
has a microcomputer control system which automatically detects pressure
while crimping. With automatic pressure release, this tool will stop pressing
and release 90% of its force when the pressure reaches a maximum value.
In addition, this tool is equipped with a double piston pump which quickly
makes contact to the material and then transitions to a slower, high–pressure
crimp. The crimping head has a 350° range of movement in order to gain
better access to tight corners and other difficult working areas.

FEATURES:
• Crimping force: 12 tons
• Stroke: 1.65" / 42 mm
• Crimp per charge: 120 crimps
• Crimping cycle: 6–18 seconds (varies based on cable size)
• Voltage: 18V
• Capacity: 3.0 Ah
• Easy to use one–trigger control
• If a deviation from the set operation or a low battery
charge is detected, then an audible warning and a (red)
display light flashes. 902-484-BATTERY
• Charging time: 2 hours Replacement Battery
• Replacement battery x 2 pcs
• Replacement battery charger x 1 pc 902-484-CHARGER
• Includes 12 die sets listed in table on page 8 Replacement Charger
