P. 6

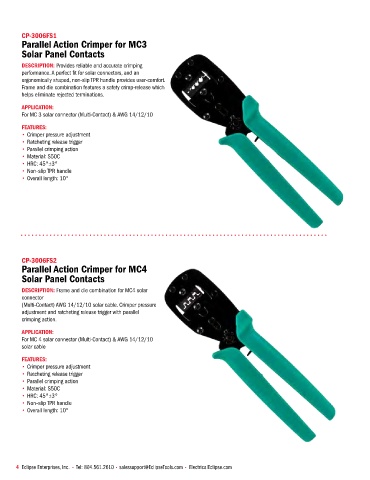

CP-3006FS1
Parallel Action Crimper for MC3
Solar Panel Contacts
DESCRIPTION: Provides reliable and accurate crimping
performance. A perfect fit for solar connectors, and an
ergonomically shaped, non‑slip TPR handle provides user‑comfort.
Frame and die combination features a safety crimp‑release which
helps eliminate rejected terminations.
APPLICATION:
For MC 3 solar connector (Multi‑Contact) & AWG 14/12/10
FEATURES:
• Crimper pressure adjustment
• Ratcheting release trigger
• Parallel crimping action
• Material: S50C
• HRC: 45°±3°
• Non–slip TPR handle
• Overall length: 10"
CP-3006FS2
Parallel Action Crimper for MC4
Solar Panel Contacts
DESCRIPTION: Frame and die combination for MC4 solar
connector
(Multi‑Contact) AWG 14/12/10 solar cable. Crimper pressure
adjustment and ratcheting release trigger with parallel
crimping action.
APPLICATION:
For MC 4 solar connector (Multi‑Contact) & AWG 14/12/10
solar cable
FEATURES:
• Crimper pressure adjustment
• Ratcheting release trigger
• Parallel crimping action
• Material: S50C
• HRC: 45°±3°
• Non–slip TPR handle
• Overall length: 10"
