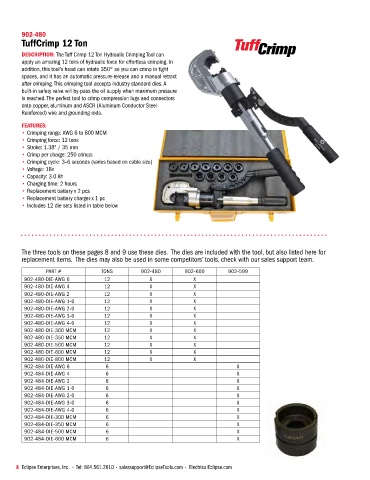

902-480
TuffCrimp 12 Ton Tuff Crimp 400
DESCRIPTION: The Tuff Crimp 12 Ton Hydraulic Crimping Tool can
apply an amazing 12 tons of hydraulic force for effortless crimping. In
addition, this tool's head can rotate 350° so you can crimp in tight
spaces, and it has an automatic pressure‑release and a manual retract
after crimping. This crimping tool accepts industry standard dies. A
built‑in safety valve will by‑pass the oil supply when maximum pressure
is reached. The perfect tool to crimp compression lugs and connectors
onto copper, aluminum and ASCR (Aluminum Conductor Steel‑
Reinforced) wire and grounding rods.

FEATURES:
• Crimping range: AWG 6 to 800 MCM
• Crimping force: 12 tons
• Stroke: 1.38" / 35 mm
• Crimp per charge: 250 crimps
• Crimping cycle: 3–6 seconds (varies based on cable size)
• Voltage: 18v
• Capacity: 3.0 Ah
• Charging time: 2 hours
• Replacement battery x 2 pcs
• Replacement battery charger x 1 pc
• Includes 12 die sets listed in table below

The three tools on these pages 8 and 9 use these dies. The dies are included with the tool, but also listed here for
replacement items. The dies may also be used in some competitors’ tools, check with our sales support team.
PART # TONS 902‑480 902‑600 902‑599
902‑480‑DIE‑AWG 6 12 X X
902‑480‑DIE‑AWG 4 12 X X
902‑480‑DIE‑AWG 2 12 X X
902‑480‑DIE‑AWG 1‑0 12 X X
902‑480‑DIE‑AWG 2‑0 12 X X
902‑480‑DIE‑AWG 3‑0 12 X X
902‑480‑DIE‑AWG 4‑0 12 X X
902‑480‑DIE‑300 MCM 12 X X
902‑480‑DIE‑350 MCM 12 X X
902‑480‑DIE‑500 MCM 12 X X
902‑480‑DIE‑600 MCM 12 X X
902‑480‑DIE‑800 MCM 12 X X
902‑484‑DIE‑AWG 6 6 X
902‑484‑DIE‑AWG 4 6 X
902‑484‑DIE‑AWG 2 6 X
902‑484‑DIE‑AWG 1‑0 6 X
902‑484‑DIE‑AWG 2‑0 6 X
902‑484‑DIE‑AWG 3‑0 6 X
902‑484‑DIE‑AWG 4‑0 6 X
902‑484‑DIE‑300 MCM 6 X
902‑484‑DIE‑350 MCM 6 X
902‑484‑DIE‑500 MCM 6 X
902‑484‑DIE‑600 MCM 6 X
