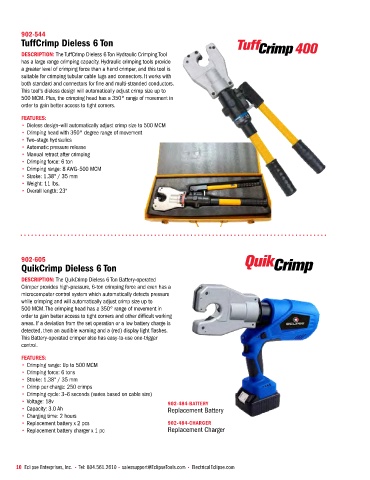

Page 12 - EclipseTools_2019-2020_Electrical

902-544
TuffCrimp Dieless 6 Ton Tuff Crimp 400
DESCRIPTION: The TuffCrimp Dieless 6 Ton Hydraulic Crimping Tool
has a large range crimping capacity. Hydraulic crimping tools provide
a greater level of crimping force than a hand crimper, and this tool is
suitable for crimping tubular cable lugs and connectors. It works with
both standard and connectors for fine and multi‑stranded conductors.
This tool's dieless design will automatically adjust crimp size up to
500 MCM. Plus, the crimping head has a 350° range of movement in
order to gain better access to tight corners.

FEATURES:
• Dieless design–will automatically adjust crimp size to 500 MCM
• Crimping head with 350° degree range of movement
• Two–stage hydraulics
• Automatic pressure release
• Manual retract after crimping
• Crimping force: 6 ton
• Crimping range: 8 AWG–500 MCM
• Stroke: 1.38" / 35 mm
• Weight: 11 lbs.
• Overall length: 23"

902-605
QuikCrimp Dieless 6 Ton

DESCRIPTION: The QuikCrimp Dieless 6 Ton Battery‑operated
Crimper provides high‑pressure, 6‑ton crimping force and even has a
microcomputer control system which automatically detects pressure
while crimping and will automatically adjust crimp size up to
500 MCM. The crimping head has a 350° range of movement in
order to gain better access to tight corners and other difficult working
areas. If a deviation from the set operation or a low battery charge is
detected, then an audible warning and a (red) display light flashes.
This Battery‑operated crimper also has easy‑to‑use one‑trigger
control.

FEATURES:
• Crimping range: Up to 500 MCM
• Crimping force: 6 tons
• Stroke: 1.38" / 35 mm
• Crimp per charge: 250 crimps
• Crimping cycle: 3–6 seconds (varies based on cable size)
• Voltage: 18v 902-484-BATTERY
• Capacity: 3.0 Ah Replacement Battery
• Charging time: 2 hours
• Replacement battery x 2 pcs 902-484-CHARGER
• Replacement battery charger x 1 pc Replacement Charger
