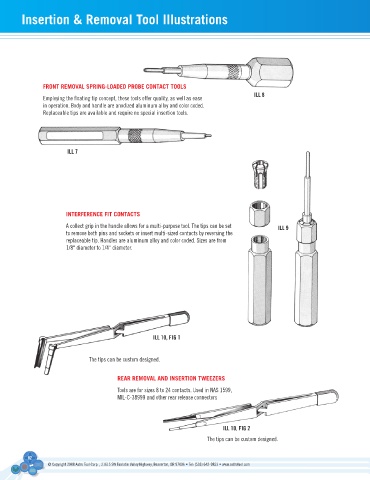

Insertion & Removal Tool Illustrations

FRONT REMOvAL SPRING-LOADED PROBE CONTACT TOOLS
ILL 8
employing the floating tip concept, these tools offer quality, as well as ease
in operation. Body and handle are anodized aluminum alloy and color coded.
Replaceable tips are available and require no special insertion tools.

ILL 7

INTERFERENCE FIT CONTACTS

A collect grip in the handle allows for a multi-purpose tool. The tips can be set ILL 9
to remove both pins and sockets or insert multi-sized contacts by reversing the
replaceable tip. Handles are aluminum alloy and color coded. Sizes are from
1/8" diameter to 1/4" diameter.

ILL 10, FIG 1

The tips can be custom designed.

REAR REMOvAL AND INSERTION TWEEZERS

Tools are for sizes 8 to 24 contacts. Used in nAS 1599,
MIL-C-38999 and other rear release connectors

ILL 10, FIG 2
The tips can be custom designed.
