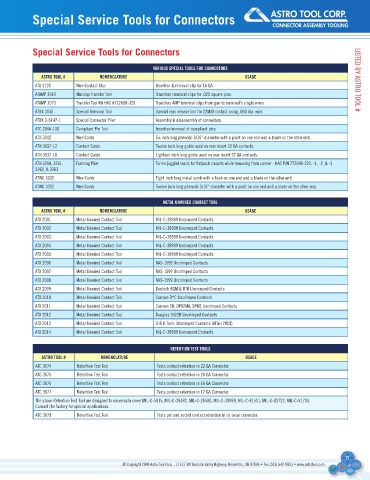

Page 78 - Astro-Catalog2020.11

Plastic Insertion & Removal Tool Selection Charts Special Service Tools for Connectors

Special Service Tools for Connectors

VARIOUS SPECIAL TOOLS FOR CONNECTORS
ASTRO TOOL # NOMENCLATURE USAGE LISTed By ASTRO TOOL #
ATA 3120 Wire Contact Clip Insertion & removal clip for 16 gA.
ATAMP 3040 Miniclip Transfer Tool Transfers terminal clips for .025 square pins.
ATAMP 3070 Transfer Tool kit HAC #722698-329 Transfers AMP terminal clips from gun to terminal’s single wires.
ATBX 3050 Special Removal Tool Special rear release tool for 22M/d contact using .060 dia. wire.
ATBX 3-6147-1 Special Connector Plier Assembly & disassembly of connectors.
ATC 2046-100 Compliant Pin Tool Insertion/removal of compliant pins
ATd 3312 Wire Comb Six inch long phenolic 5/16” diameter with a point on one end and a blade on the other end.
ATH 3037-12 Contact guide Twelve inch long guide used on rear insert 22 gA contacts.
ATH 3037-18 Contact guide eighteen inch long guide used on rear insert 22 gA contacts.
ATH 3260, 3261, Forming Plier Forms joggled leads for flatpack circuits while removing from carrier - HAC P/n 772699-224, -1, -2, & -3.
3262, & 3263
ATWC 3032 Wire Comb eight inch long metal comb with a hook on one end and a blade on the other end.
ATWC 3312 Wire Comb Twelve inch long phenolic 5/16” diameter with a point on one end and a blade on the other end.

METAL UNWIRED CONTACT TOOL
ASTRO TOOL # NOMENCLATURE USAGE
ATX 2001 Metal Unwired Contact Tool MIL-C-38999 Uncrimped Contacts
ATX 2002 Metal Unwired Contact Tool MIL-C-38999 Uncrimped Contacts
ATX 2003 Metal Unwired Contact Tool MIL-C-38999 Uncrimped Contacts
ATX 2004 Metal Unwired Contact Tool MIL-C-38999 Uncrimped Contacts
ATX 2005 Metal Unwired Contact Tool MIL-C-38999 Uncrimped Contacts
ATX 2006 Metal Unwired Contact Tool nAS-1599 Uncrimped Contacts
ATX 2007 Metal Unwired Contact Tool nAS-1599 Uncrimped Contacts
ATX 2008 Metal Unwired Contact Tool nAS-1599 Uncrimped Contacts
ATX 2009 Metal Unwired Contact Tool deutsch RSM & RTk Uncrimped Contacts
ATX 2010 Metal Unwired Contact Tool Cannon d*C Uncrimped Contacts
ATX 2011 Metal Unwired Contact Tool Cannon Ck, dPX2MA, dPkB Uncrimped Contacts
ATX 2012 Metal Unwired Contact Tool douglas 2022B Uncrimped Contacts
ATX 2013 Metal Unwired Contact Tool g & H Tech. Uncrimped Contacts (ATgH 2054)
ATX 2014 Metal Unwired Contact Tool MIL-C-38999 Uncrimped Contacts

RETENTION TEST TOOLS
ASTRO TOOL # NOMENCLATURE USAGE
ATC 3074 Retention Test Tool Tests contact retention in 22 gA Connector.
ATC 3075 Retention Test Tool Tests contact retention in 20 gA Connector.
ATC 3076 Retention Test Tool Tests contact retention in 16 gA Connector.
ATC 3077 Retention Test Tool Tests contact retention in 12 gA Connector.
The above Retention Test Tool are designed to universally cover MIL-C-5015, MIL-C-26482, MIL-C-26500, MIL-C-38999, MIL-C-81511, MIL-C-83723, MIL-C-81703.
Consult the factory for special applications.
ATC 3078 Retention Test Tool Tests pin and socket contact retention in co-axial connector.

77
