Page 74 - Astro-Catalog2020.11

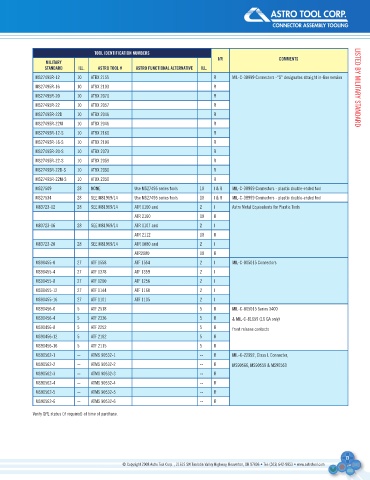

TOOL IDENTIFICATION NUMBERS
I/R COMMENTS
MILITARY
STANDARD ILL. ASTRO TOOL # ASTRO FUNCTIONAL ALTERNATIVE ILL.
MS27495R-12 10 ATBX 2155 R MIL-C-38999 Connectors -“S” designates straight in-line version
MS27495R-16 10 ATBX 2103 R LISTed By MILITARy STAndARd
MS27495R-20 10 ATBX 2070 R
MS27495R-22 10 ATBX 2057 R
MS27495R-22d 10 ATBX 2046 R
MS27495R-22M 10 ATBX 2046 R
MS27495R-12-S 10 ATBX 2160 R
MS27495R-16-S 10 ATBX 2109 R
MS27495R-20-S 10 ATBX 2073 R
MS27495R-22-S 10 ATBX 2059 R
MS27495R-22d-S 10 ATBX 2050 R
MS27495R-22M-S 10 ATBX 2050 R
MS27509 28 nOne Use MS27495 series tools 10 I & R MIL-C-38999 Connectors - plastic double-ended tool
MS27534 28 See M81969/14 Use MS27495 series tools 10 I & R MIL-C-38999 Connectors - plastic double-ended tool
M83723-12 28 See M81969/14 ATR 1160 and 2 I Astro Metal equivalents for Plastic Tools
ATR 2160 10 R
M83723-16 28 See M81969/14 ATR 1107 and 2 I
ATR 2112 10 R
M83723-20 28 See M81969/14 ATR 1080 and 2 I
ATR2080 10 R
MS90455-0 27 ATF 1558 ATF 1554 2 I MIL-C-005015 Connectors
MS90455-4 27 ATF 1378 ATF 1359 2 I
MS90455-8 27 ATF 1260 ATF 1256 2 I
MS90455-12 27 ATF 1144 ATF 1160 2 I
MS90455-16 27 ATF 1101 ATF 1105 2 I
MS90456-0 5 ATF 2518 5 R MIL-C-005015 Series 3400
MS90456-4 5 ATF 2336 5 R & MIL-C-81659 (16 gA only)
MS90456-8 5 ATF 2252 5 R front release contacts
MS90456-12 5 ATF 2162 5 R
MS90456-16 5 ATF 2115 5 R
MS90562-1 -- ATMS 90532-1 -- R MIL-C-22992, Class L Connector,
MS90562-2 -- ATMS 90532-2 -- R MS90566, MS90559 & MS90560
MS90562-3 -- ATMS 90532-3 -- R
MS90562-4 -- ATMS 90532-4 -- R
MS90562-5 -- ATMS 90532-5 -- R
MS90562-6 -- ATMS 90532-6 -- R

Verify QPL status (if required) at time of purchase.

73
© Copyright 2008 Astro Tool Corp. , 21615 SW Tualatin Valley Highway, Beaverton, OR 97006 • Tel: (503) 642-9853 • www.astrotool.com
