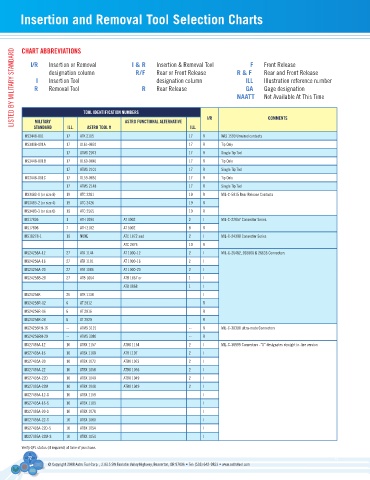

Insertion and Removal Tool Selection Charts

CHART ABBREVIATIONS
LISTed By MILITARy STAndARd I/R Insertion or Removal I & R Insertion & Removal Tool R & F Front Release
F
designation column
Rear and Front Release
R/F
Rear or Front Release

designation column
Illustration reference number
ILL
Insertion Tool

I
Rear Release
Removal Tool

GA
R
R

gage designation
NAATT not Available At This Time
TOOL IDENTIFICATION NUMBERS
MILITARY
ASTRO TOOL #
STANDARD
MS3448-001 17 ILL. ATk 2115 ASTRO FUNCTIONAL ALTERNATIVE 17 ILL. R I/R nAS 1599 Unwired contacts COMMENTS
MS3448-001A 17 0161-0031 17 R Tip Only
17 ATMS 2073 17 R Single Tip Tool
MS3448-001B 17 0160-0041 17 R Tip Only
17 ATMS 2101 17 R Single Tip Tool
MS3448-001C 17 0159-0051 17 R Tip Only
17 ATMS 2148 17 R Single Tip Tool
MS3483-1 (or size 8) 19 ATC 2281 19 R MIL-C-5015 Rear Release Contacts
MS3483-2 (or size 4) 19 ATC 2426 19 R
MS3483-3 (or size 0) 19 ATC 2565 19 R
MS17805 1 ATH 1094 AT 4002 2 I MIL-C-22857 Connector Series
MS17806 7 ATH 2102 AT 5002 8 R
MS18278-1 19 nOne ATC 1072 and 2 I MIL-C-24308 Connector Series
ATC 2076 10 R
MS24256A-12 27 ATA 1144 AT 1000-12 2 I MIL-C-26482, 265000 & 26636 Connectors
MS24256A-16 27 ATA 1101 AT 1000-16 2 I
MS24256A-20 27 ATA 1086 AT 1000-20 2 I
MS24256B-20 27 ATB 1064 ATB 1067 or 1 I
ATB 1068 1 I
MS24256k 26 ATk 1130 I
MS24256R-12 6 AT 2012 R
MS24256R-16 6 AT 2016 R
MS24256R-20 6 AT 2020 R
MS24256RH-16 -- ATMS 3115 -- R MIL-C-38300 ultra-mate Connectors
MS24256RH-20 -- ATMS 3080 -- R
MS27495A-12 10 ATBX 1157 ATBX 1154 2 I MIL-C-38999 Connectors -“S” designates straight in-line version
MS27495A-16 10 ATBX 1108 ATR 1107 2 I
MS27495A-20 10 ATBX 1072 ATBX 1073 2 I
MS27495A-22 10 ATBX 1058 ATBX 1055 2 I
MS27495A-22d 10 ATBX 1048 ATBX 1049 2 I
MS27495A-22M 10 ATBX 1048 ATBX 1049 2 I
MS27495A-12-S 10 ATBX 1159 I
MS27495A-16-S 10 ATBX 1109 I
MS27495A-20-S 10 ATBX 1078 I
MS27495A-22-S 10 ATBX 1060 I
MS27495A-22d-S 10 ATBX 1054 I
MS27495A-22M-S 10 ATBX 1054 I
Verify QPL status (if required) at time of purchase.
