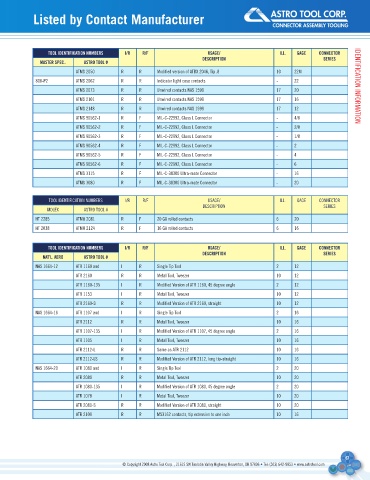

Insertion and Removal Tool Selection Charts Listed by Contact Manufacturer

TOOL IDENTIFICATION NUMBERS I/R R/F USAGE/ ILL. GAGE CONNECTOR
DESCRIPTION SERIES
MASTER SPEC.. ASTRO TOOL #
ATMS 2050 R R Modified version of ATBX 2046, Tip .8 10 22M
800-P2 ATMS 2062 R R Indicator light case contacts - 22
ATMS 2073 R R Unwired contacts nAS 1599 17 20 IdenTIFICATIOn InFORMATIOn
ATMS 2101 R R Unwired contacts nAS 1599 17 16
ATMS 2148 R R Unwired contacts nAS 1599 17 12
ATMS 90562-1 R F MIL-C-22992, Class L Connector - 4/0
ATMS 90562-2 R F MIL-C-22992, Class L Connector - 2/0
ATMS 90562-3 R F MIL-C-22992, Class L Connector - 1/0
ATMS 90562-4 R F MIL-C-22992, Class L Connector - 2
ATMS 90562-5 R F MIL-C-22992, Class L Connector - 4
ATMS 90562-6 R F MIL-C-22992, Class L Connector - 6
ATMS 3115 R F MIL-C-38300 Ultra-mate Connector - 16
ATMS 3080 R F MIL-C-38300 Ultra-mate Connector - 20

TOOL IdenTIFICATIOn nUMBeRS I/R R/F USAge/ ILL. gAge COnneCTOR
deSCRIPTIOn SeRIeS
MOLeX ASTRO TOOL #
HT 2285 ATMO 2081 R F 20 gA rolled contacts 6 20
HT 2038 ATMO 2124 R F 16 gA rolled contacts 6 16

TOOL IDENTIFICATION NUMBERS I/R R/F USAGE/ ILL. GAGE CONNECTOR
DESCRIPTION SERIES
NAT’L. AERO ASTRO TOOL #
nAS 1664-12 ATR 1160 and I R Single Tip Tool 2 12
ATR 2160 R R Metal Tool, Tweezer 10 12
ATR 1160-135 I R Modified Version of ATR 1160, 45 degree angle 2 12
ATR 1153 I R Metal Tool, Tweezer 10 12
ATR 2160-S R R Modified Version of ATR 2160, straight 10 12
nAS 1664-16 ATR 1107 and I R Single Tip Tool 2 16
ATR 2112 R R Metal Tool, Tweezer 10 16
ATR 1107-135 I R Modified Version of ATR 1107, 45 degree angle 2 16
ATR 1105 I R Metal Tool, Tweezer 10 16
ATR 2112-L R R Same as ATR 2112 10 16
ATR 2112-LS R R Modified Version of ATR 2112, long tip-straight 10 16
nAS 1664-20 ATR 1080 and I R Single Tip Tool 2 20
ATR 2080 R R Metal Tool, Tweezer 10 20
ATR 1080-135 I R Modified Version of ATR 1080, 45 degree angle 2 20
ATR 1078 I R Metal Tool, Tweezer 10 20
ATR 2080-S R R Modified Version of ATR 2080, straight 10 20
ATR 2109 R R MS3162 contacts, tip extension to one inch 10 16

67
