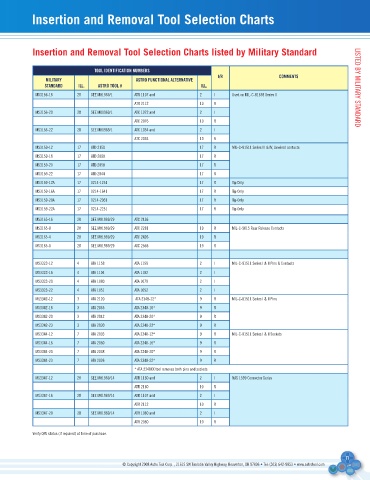

Insertion and Removal Tool Selection Charts Insertion and Removal Tool Selection Charts

Insertion and Removal Tool Selection Charts listed by Military Standard

TOOL IDENTIFICATION NUMBERS
I/R COMMENTS
MILITARY ASTRO FUNCTIONAL ALTERNATIVE
STANDARD ILL. ASTRO TOOL # ILL. LISTed By MILITARy STAndARd
MS3156-16 28 See M81969/1 ATR 1107 and 2 I Used on MIL-C-81659 Series II
ATR 2112 10 R
MS3156-20 28 See M81969/1 ATC 1072 and 2 I
ATC 2076 10 R
MS3156-22 28 See M81969/1 ATC 1054 and 2 I
ATC 2053 10 R
MS3159-12 17 ATd 2150 17 R MIL-C-81511 Series III & IV, Unwired contacts
MS3159-16 17 ATd 2090 17 R
MS3159-20 17 ATd 2058 17 R
MS3159-22 17 ATd 2044 17 R
MS3159-12A 17 0214-1251 17 R Tip Only
MS3159-16A 17 0214-1641 17 R Tip Only
MS3159-20A 17 0214-2031 17 R Tip Only
MS3159-22A 17 0214-2251 17 R Tip Only

MS3165-16 28 See M81969/29 ATC 2136
MS3165-8 28 See M81969/29 ATC 2281 19 R MIL-C-5015 Rear Release Contacts
MS3165-4 28 See M81969/29 ATC 2426 19 R
MS3165-0 28 See M81969/29 ATC 2565 19 R

MS3323-12 4 ATA 1158 ATA 1159 2 I MIL-C-81511 Series I & II Pins & Contacts
MS3323-16 4 ATA 1104 ATA 1102 2 I
MS3323-20 4 ATA 1080 ATA 1079 2 I
MS3323-22 4 ATA 1051 ATA 1052 2 I
MS3342-12 3 ATA 2120 ATA 2348-12* 9 R MIL-C-81511 Series I & II Pins
MS3342-16 3 ATA 2065 ATA 2348-16* 9 R
MS3342-20 3 ATA 2042 ATA 2348-20* 9 R
MS3342-23 3 ATA 2030 ATA 2348-22* 9 R
MS3344-12 7 ATA 2093 ATA 2348-12* 9 R MIL-C-81511 Series I & II Sockets
MS3344-16 7 ATA 2060 ATA 2348-16* 9 R
MS3344-20 7 ATA 2038 ATA 2348-20* 9 R
MS3344-23 7 ATA 2026 ATA 2348-22* 9 R
* ATA 2348XX tool removes both pins and sockets
MS3347-12 28 See M81969/14 ATR 1160 and 2 I nAS 1599 Connector Series
ATR 2160 10 R
MS3347-16 28 See M81969/14 ATR 1107 and 2 I
ATR 2112 10 R
MS3347-20 28 See M81969/14 ATR 1080 and 2 I
ATR 2080 10 R

Verify QPL status (if required) at time of purchase.
