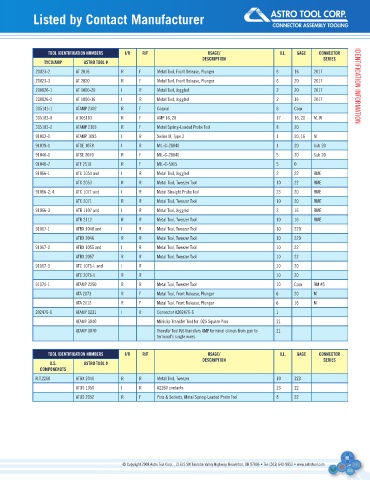

Insertion and Removal Tool Selection Charts Listed by Contact Manufacturer

TOOL IDENTIFICATION NUMBERS I/R R/F USAGE/ ILL. GAGE CONNECTOR TOOL IDENTIFICATION NUMBERS I/R R/F USAGE/ ILL. GAGE CONNECTOR
DESCRIPTION SERIES DESCRIPTION SERIES
POSITRONICS ASTRO TOOL # TYCO/AMP ASTRO TOOL #
9081 ATg 2103 R F Metal Spring-Loaded Probe Tool 8 16 20823-2 AT 2016 R F Metal Tool, Front Release, Plunger 6 16 2017
9099 AT 4004 I R Metal Tool, Joggled 2 16 20823-3 AT 2020 R F Metal Tool, Front Release, Plunger 6 20 2017
200826-1 AT 1000-20 I R Metal Tool, Joggled 2 20 2017 IdenTIFICATIOn InFORMATIOn
200826-2 AT 1000-16 I R Metal Tool, Joggled 2 16 2017
305141-1 ATAMP 2302 R F Coaxial 6 Coax
305183-0 A 305183 R F AMP 16, 20 17 16, 20 M, W
305183-2 ATAMP 2103 R F Metal Spring-Loaded Probe Tool 8 20
91002-1 ATAMP 1085 I R Series M, Type 3 1 20, 16 M
91039-1 ATSe 1078 I R MIL-C-28840 1 20 Sub 20
91040-1 ATSe 2070 R F MIL-C-28840 5 20 Sub 20
91040-7 ATF 2518 R F MIL-C-5015 5 0
91066-1 ATC 1054 and I R Metal Tool, Joggled 2 22 RMe
ATC 2053 R R Metal Tool, Tweezer Tool 10 22 RMe
91066-2, 4 ATC 1071 and I R Metal Straight Probe Tool 23 20 RMe
ATC 2071 R R Metal Tool, Tweezer Tool 10 20 RMe
91066-3 ATR 1107 and I R Metal Tool, Joggled 2 16 RMe
ATR 2112 R R Metal Tool, Tweezer Tool 10 16 RMe
91067-1 ATBX 1048 and I R Metal Tool, Tweezer Tool 10 22d
ATBX 2046 R R Metal Tool, Tweezer Tool 10 22d
91067-2 ATBX 1055 and I R Metal Tool, Tweezer Tool 10 22
ATBX 2057 R R Metal Tool, Tweezer Tool 10 22
91067-3 ATC 1076-L and I R 10 20
ATC 2076-L R R 10 20
91074-1 ATAMP 2250 R R Metal Tool, Tweezer Tool 10 Coax RM #5
ATA 2073 R F Metal Tool, Front Release, Plunger 6 20 M
ATA 2112 R F Metal Tool, Front Release, Plunger 6 16 M
202476-6 ATAMP 1231 I R Connector #202476-6 1
ATAMP 3040 Miniclip Transfer Tool for .025 Square Pins 21
ATAMP 3070 Transfer Tool kit-transfers AMP terminal climps from gun to 21
terminal’s single wires.

TOOL IDENTIFICATION NUMBERS I/R R/F USAGE/ ILL. GAGE CONNECTOR
DESCRIPTION SERIES
U.S. ASTRO TOOL #
COMPONENDTS
R.T.2260 ATBX 2046 R R Metal Tool, Tweezer 10 22d
ATUS 1050 I R #2260 contacts 23 22
ATUS 2052 R F Pins & Sockets, Metal Spring-Loaded Probe Tool 8 22
