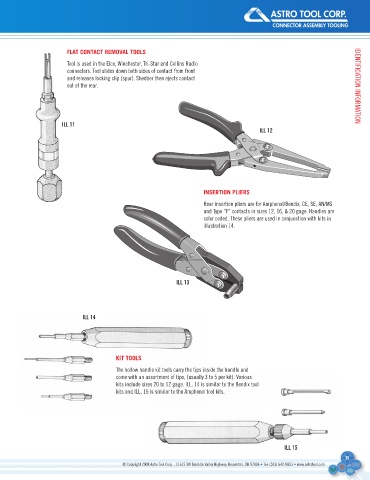

Insertion & Removal Tool Illustrations

FLAT CONTACT REMOvAL TOOLS
Tool is used in the elco, Winchester, Tri-Star and Collins Radio
connectors. Tool slides down both sides of contact from front
and releases locking clip (spur). Shedder then ejects contact
out of the rear. IdenTIFICATIOn InFORMATIOn

ILL 11
ILL 12

INSERTION PLIERS
Rear insertion pliers are for Amphenol/Bendix, Ce, Se, An/MS
and Type “F” contacts in sizes 12, 16, & 20 gage. Handles are
color coded. These pliers are used in conjunction with kits in
illustration 14.

ILL 13

ILL 14

KIT TOOLS

The hollow handle kit tools carry the tips inside the handle and
come with an assortment of tips, (usually 3 to 5 per kit). Various
kits include sizes 20 to 12 gage. ILL. 14 is similar to the Bendix tool
kits and ILL. 15 is similar to the Amphenol tool kits.

ILL 15
