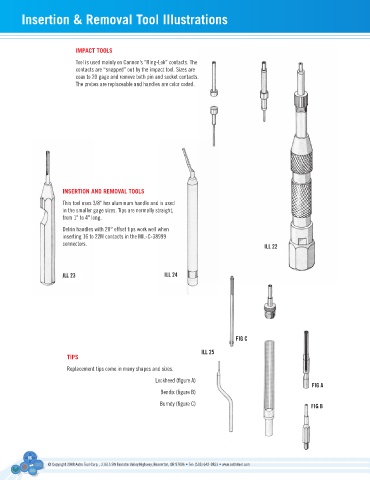

Insertion & Removal Tool Illustrations

IMPACT TOOLS
Tool is used mainly on Cannon’s “Ring-Lok” contacts. The
contacts are “snapped” out by the impact tool. Sizes are
coax to 20 gage and remove both pin and socket contacts.
The probes are replaceable and handles are color coded.

INSERTION AND REMOvAL TOOLS
This tool uses 3/8" hex aluminum handle and is used
in the smaller gage sizes. Tips are normally straight,
from 1" to 4" long.
delrin handles with 20° offset tips work well when
inserting 16 to 22M contacts in the MIL-C-38999
connectors. ILL 22

ILL 23 ILL 24

FIG C

ILL 25
TIPS
Replacement tips come in many shapes and sizes.

Lockheed (figure A)
FIG A
Bendix (figure B)
Burndy (figure C) FIG B

86
