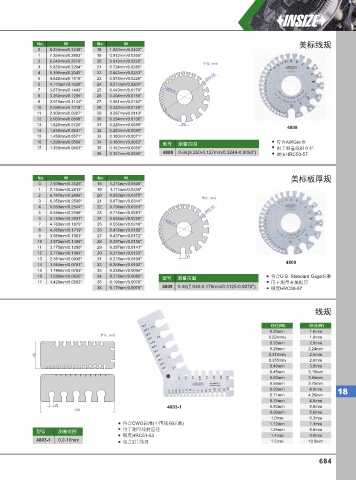

P. 693
美标线规
No. W No. W
0 8.250mm/0.3249" 18 1.020mm/0.0403"
1 7.350mm/0.2893" 19 0.912mm/0.0359"
2 6.540mm/0.2576" 20 0.813mm/0.0320"
单位: mm
3 5.830mm/0.2294" 21 0.724mm/0.0285"
4 5.190mm/0.2043" 22 0.643mm/0.0253"
5 4.620mm/0.1819" 23 0.574mm/0.0226" Ø82.55
6 4.110mm/0.1620" 24 0.511mm/0.0201"
7 3.670mm/0.1443" 25 0.440mm/0.0179" Ø25.4
8 3.260mm/0.1285" 26 0.404mm/0.0159"
9 2.910mm/0.1144" 27 0.361mm/0.0142"
10 2.590mm/0.1019" 28 0.320mm/0.0126"
11 2.300mm/0.0907" 29 0.287mm/0.0113"
12 2.050mm/0.0808" 30 0.254mm/0.0100"
13 1.820mm/0.0720" 31 0.226mm/0.0089" W
4808
14 1.630mm/0.0641" 32 0.203mm/0.0080"
15 1.450mm/0.0571" 33 0.180mm/0.0071"
16 1.290mm/0.0508" 34 0.160mm/0.0063" 型号 测量范围 符合AWG标准
17 1.150mm/0.0453" 35 0.142mm/0.0056" 用于测量线材直径
36 0.127mm/0.0050" 4808 0-36(8.250-0.127mm/0.3249-0.0050") 硬度HRC50-57
美标板厚规
No. W No. W
0 7.938mm/0.3125" 18 1.270mm/0.0500"
1 7.144mm/0.2813" 19 1.111mm/0.0438"
2 6.747mm/0.2656" 20 0.953mm/0.0375"
单位: mm
3 6.350mm/0.2500" 21 0.873mm/0.0344"
4 5.953mm/0.2344" 22 0.794mm/0.0313" Ø82.55
5 5.556mm/0.2188" 23 0.714mm/0.0281"
6 5.159mm/0.2031" 24 0.635mm/0.0250"
7 4.763mm/0.1875" 25 0.556mm/0.0219" Ø25.4
8 4.366mm/0.1719" 26 0.476mm/0.0188"
9 3.969mm/0.1563" 27 0.437mm/0.0172"
10 3.572mm/0.1406" 28 0.397mm/0.0156"
11 3.175mm/0.1250" 29 0.357mm/0.0141"
12 2.778mm/0.1094" 30 0.318mm/0.0125"
W
13 2.381mm/0.0938" 31 0.278mm/0.0109"
4809
14 1.984mm/0.0781" 32 0.258mm/0.0102"
15 1.786mm/0.0703" 33 0.238mm/0.0094"
16 1.588mm/0.0625" 34 0.218mm/0.0086" 符合U.S. Standard Gage标准
型号 测量范围
17 1.429mm/0.0563" 35 0.198mm/0.0078" 用于测量金属板厚
36 0.179mm/0.0070" 4809 0-36(7.938-0.179mm/0.3125-0.0070") 硬度HRC50-57
线规
线径(W) 线径(W)
0.20mm 1.6mm
单位: mm
0.224mm 1.8mm
0.25mm 2.0mm
0.28mm 2.24mm
45 0.315mm 2.5mm
0.355mm 2.8mm
0.40mm 3.0mm
0.45mm 3.15mm
0.50mm 3.55mm
0.56mm 3.75mm
0.63mm 4.0mm 18
0.71mm 4.25mm
0.75mm 4.5mm
W 4803-1 0.80mm 5.0mm
120
0.90mm 5.6mm
1.0mm 6.3mm
符合CWG标准(中国线规标准) 1.12mm 7.1mm
型号 测量范围 用于测量线材直径 1.25mm 8.0mm
硬度HRC51-53 1.4mm 9.0mm
4803-1 0.2-10mm 包含2片线规 1.5mm 10.0mm
