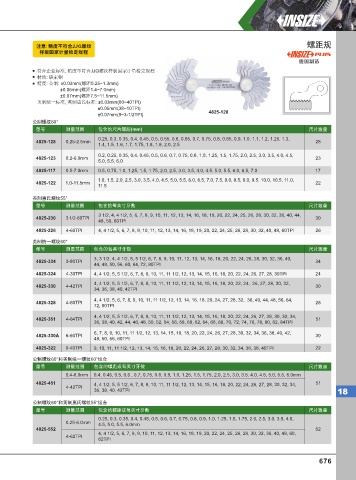

P. 685
注意: 精度不符合JJG螺纹 螺距规
样板国家计量检定规程
德国制造
符合企业标准, 精度不符合JJG螺纹样板国家计量检定规程
材质: 碳素钢
精度: 公制: ±0.03mm(螺距0.25~1.3mm)
±0.05mm(螺距1.4~7.0mm)
±0.07mm(螺距7.5~11.5mm)
美制统一标准, 英制惠氏标准: ±0.03mm(80~40TPI)
±0.05mm(38~10TPI)
±0.07mm(9~3-1/2TPI) 4825-128
公制螺纹60°
型号 测量范围 包含的尺片螺距(mm) 尺片数量
0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.55, 0.6, 0.65, 0.7, 0.75, 0.8, 0.85, 0.9, 1.0, 1.1, 1.2, 1.25, 1.3,
4825-128 0.25-2.5mm 28
1.4, 1.5, 1.6, 1.7, 1.75, 1.8, 1.9, 2.0, 2.5
0.2, 0.25, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5,
4825-123 0.2-6.0mm 23
5.0, 5.5, 6.0
4825-117 0.5-7.0mm 0.5, 0.75, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0 17
1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10.0, 10.5, 11.0,
4825-122 1.0-11.5mm 22
11.5
英制惠氏螺纹55°
型号 测量范围 包含的每英寸牙数 尺片数量
3 1/2, 4, 4 1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 44,
4825-230 3 1/2-60TPI 30
48, 50, 60TPI
4825-226 4-60TPI 4, 4 1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 40, 48, 60TPI 26
美制统一螺纹60°
型号 测量范围 包含的每英寸牙数 尺片数量
3, 3 1/2, 4, 4 1/2, 5, 5 1/2, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40,
4825-334 3-80TPI 34
44, 48, 50, 56, 60, 64, 72, 80TPI
4825-324 4-30TPI 4, 4 1/2, 5, 5 1/2, 6, 7, 8, 9, 10, 11, 11 1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30TPI 24
4, 4 1/2, 5, 5 1/2, 6, 7, 8, 9, 10, 11, 11 1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32,
4825-330 4-42TPI 30
34, 36, 38, 40, 42TPI
4, 4 1/2, 5, 6, 7, 8, 9, 10, 11, 11 1/2, 12, 13, 14, 16, 18, 20, 24, 27, 28, 32, 36, 40, 44, 48, 56, 64,
4825-328 4-80TPI 28
72, 80TPI
4, 4 1/2, 5, 5 1/2, 6, 7, 8, 9, 10, 11, 11 1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34,
4825-351 4-84TPI 51
36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82, 84TPI
6, 7, 8, 9, 10, 11, 11 1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42,
4825-330A 6-60TPI 30
48, 50, 56, 60TPI
4825-322 9-40TPI 9, 10, 11, 11 1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40TPI 22
公制螺纹60°和美制统一螺纹60°组合
型号 测量范围 包含的螺距或每英寸牙数 尺片数量
0.4-6.0mm 0.4, 0.45, 0.5, 0.6 , 0.7, 0.75, 0.8, 0.9, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0mm
4825-451 4, 4 1/2, 5, 5 1/2, 6, 7, 8, 9, 10, 11, 11 1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 51
4-42TPI
36, 38, 40, 42TPI 18
公制螺纹60°和英制惠氏螺纹55°组合
型号 测量范围 包含的螺距或每英寸牙数 尺片数量
0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0,
0.25-6.0mm 4.5, 5.0, 5.5, 6.0mm
4825-552 52
4, 4 1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60,
4-62TPI
62TPI
