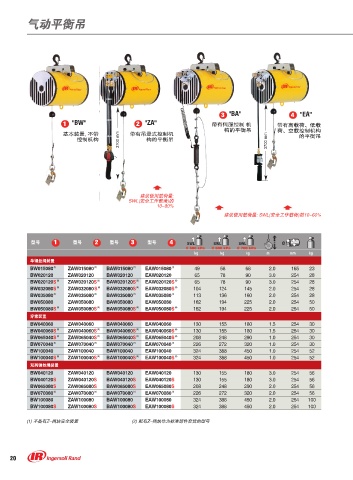

Page 20 - 英格索兰工业装配方案IngersollRand

气动平衡吊

3 "BA" 4 "EA"
1 "BW" 2 "ZA" 带有伺服控制 机 带有高载荷、低载
构的平衡吊 荷、空载控制机构
基本装置, 不带 带有吊悬式控制机 的平衡吊
控制机构 3700 mm 构的平衡吊 3700 mm

建议使用载荷量:
SWL(安全工作载荷)的
10~80%
建议使用载荷量: SWL(安全工作载荷)的10~60%

型号 1 型号 2 型号 3 型号 4

kg kg kg m mm kg
单钢丝绳装置
BW015080 (1) ZAW015080 (1) BAW015080 (1) EAW015080 (1) 49 58 68 2.0 165 23
BW020120 ZAW020120 BAW020120 EAW020120 65 78 90 3.0 254 28
BW020120S (2) ZAW020120S (2) BAW020120S (2) EAW020120S (2) 65 78 90 3.0 254 28
BW032080S (2) ZAW032080S (2) BAW032080S (2) EAW032080S (2) 104 124 145 2.0 254 28
BW035080 (1) ZAW035080 (1) BAW035080 (1) EAW035080 (1) 113 136 160 2.0 254 28
BW050080 ZAW050080 BAW050080 EAW050080 162 194 225 2.0 254 50
BW050080S (2) ZAW050080S (2) BAW050080S (2) EAW050080S (2) 162 194 225 2.0 254 50
穿索装置
BW040060 ZAW040060 BAW040060 EAW040060 130 155 180 1.5 254 30
BW040060S (2) ZAW040060S (2) BAW040060S (2) EAW040060S (2) 130 155 180 1.5 254 30
BW065040S (2) ZAW065040S (2) BAW065040S (2) EAW065040S (2) 208 248 290 1.0 254 30
BW070040 (1) ZAW070040 (1) BAW070040 (1) EAW070040 (1) 226 272 320 1.0 254 30
BW100040 ZAW100040 BAW100040 EAW100040 324 388 450 1.0 254 52
BW100040S (2) ZAW100040S (2) BAW100040S (2) EAW100040S (2) 324 388 450 1.0 254 52
双列钢丝绳装置
BW040120 ZAW040120 BAW040120 EAW040120 130 155 180 3.0 254 56
BW040120S ZAW040120S BAW040120S EAW040120S 130 155 180 3.0 254 56
BW065080S ZAW065080S BAW065080S EAW065080S 208 248 290 2.0 254 56
BW070080 (1) ZAW070080 (1) BAW070080 (1) EAW070080 (1) 226 272 320 2.0 254 56
BW100080 ZAW100080 BAW100080 EAW100080 324 388 450 2.0 254 100
BW100080S ZAW100080S BAW100080S EAW100080S 324 388 450 2.0 254 100

(1) 不备有Z-挡块安全装置 (2) 配有Z-挡块作为标准部件交货的型号
