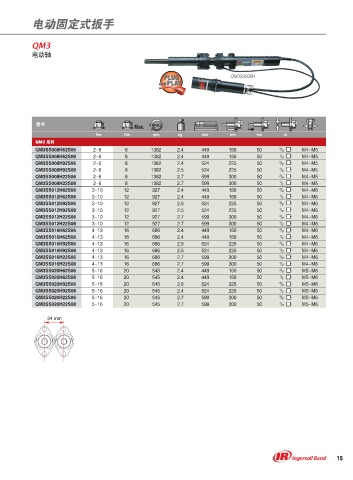

Page 15 - 英格索兰工业装配方案IngersollRand

电动固定式扳手

QM3

电动轴

QM3SS008H

型号
Nm Nm rpm kg mm mm mm in
QM3 系列
QM3SS008H62S06 2-6 8 1382 2.4 449 150 50 3 /8 M4-M5
QM3SS008H62S08 2-6 8 1382 2.4 449 150 50 1 /2 M4-M5
QM3SS008H92S06 2-6 8 1382 2.4 524 225 50 3 /8 M4-M5
QM3SS008H92S08 2-6 8 1382 2.5 524 225 50 1 /2 M4-M5
QM3SS008H22S06 2-6 8 1382 2.7 599 300 50 3 /8 M4-M5
QM3SS008H22S08 2-6 8 1382 2.7 599 300 50 1 /2 M4-M5
QM3SS012H62S06 3-10 12 927 2.4 449 150 50 3 /8 M4-M6
QM3SS012H62S08 3-10 12 927 2.4 449 150 50 1 /2 M4-M6
QM3SS012H92S06 3-10 12 927 2.5 524 225 50 3 /8 M4-M6
QM3SS012H92S08 3-10 12 927 2.5 524 225 50 1 /2 M4-M6
QM3SS012H22S06 3-10 12 927 2.7 599 300 50 3 /8 M4-M6
QM3SS012H22S08 3-10 12 927 2.7 599 300 50 1 /2 M4-M6
QM3SS016H62S06 4-13 16 686 2.4 449 150 50 3 /8 M4-M6
QM3SS016H62S08 4-13 16 686 2.4 449 150 50 1 /2 M4-M6
QM3SS016H92S06 4-13 16 686 2.5 524 225 50 3 /8 M4-M6
QM3SS016H92S08 4-13 16 686 2.5 524 225 50 1 /2 M4-M6
QM3SS016H22S06 4-13 16 686 2.7 599 300 50 3 /8 M4-M6
QM3SS016H22S08 4-13 16 686 2.7 599 300 50 1 /2 M4-M6
QM3SS020H62S06 5-16 20 545 2.4 449 150 50 3 /8 M5-M6
QM3SS020H62S08 5-16 20 545 2.4 449 150 50 1 /2 M5-M6
QM3SS020H92S06 5-16 20 545 2.5 524 225 50 3 /8 M5-M6
QM3SS020H92S08 5-16 20 545 2.4 524 225 50 1 /2 M5-M6
QM3SS020H22S06 5-16 20 545 2.7 599 300 50 3 /8 M5-M6
QM3SS020H22S08 5-16 20 545 2.7 599 300 50 1 /2 M5-M6

34 mm

15
