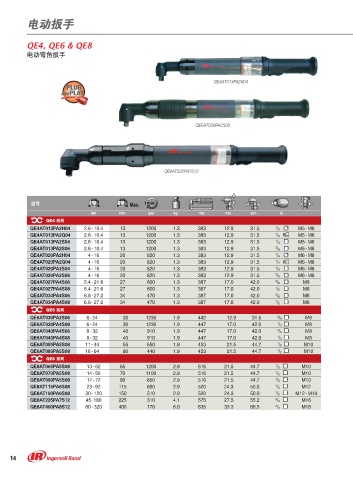

Page 14 - 英格索兰工业装配方案IngersollRand

电动扳手

QE4, QE6 & QE8

电动弯角扳手

QE4AT013PA2S04

QE6AT030PA2S06

QE8AT225PA7S12

型号
Nm Nm rpm kg mm mm mm in
QE4 系列
QE4AT013PA2H04 2.6 - 10.4 13 1200 1.3 383 12.9 31.5 1 /4 M5 - M6
QE4AT013PA2Q04 2.6 - 10.4 13 1200 1.3 383 12.9 31.5 1 /4 M5 - M6
QE4AT013PA2S04 2.6 - 10.4 13 1200 1.3 383 12.9 31.5 1 /4 M5 - M6
QE4AT013PA2S06 2.6 - 10.4 13 1200 1.3 383 12.9 31.5 3 /8 M5 - M6
QE4AT020PA2H04 4- 16 20 820 1.3 383 12.9 31.5 1 /4 M6 - M8
QE4AT020PA2Q04 4- 16 20 820 1.3 383 12.9 31.5 1 /4 M6 - M8
QE4AT020PA2S04 4- 16 20 820 1.3 383 12.9 31.5 1 /4 M6 - M8
QE4AT020PA2S06 4- 16 20 820 1.3 383 12.9 31.5 3 /8 M6 - M8
QE4AT027PA4S06 5.4 - 21.6 27 600 1.3 387 17.0 42.0 3 /8 M8
QE4AT027PA4S08 5.4 - 21.6 27 600 1.3 387 17.0 42.0 1 /2 M8
QE4AT034PA4S06 6.8 - 27.2 34 470 1.3 387 17.0 42.0 3 /8 M8
QE4AT034PA4S08 6.8 - 27.2 34 470 1.3 387 17.0 42.0 1 /2 M8
QE6 系列
QE6AT030PA2S06 6- 24 30 1230 1.9 442 12.9 31.5 3 /8 M8
QE6AT030PA4S08 6- 24 30 1230 1.9 447 17.0 42.0 1 /2 M8
QE6AT040PA4S06 8- 32 40 910 1.9 447 17.0 42.0 3 /8 M8
QE6AT040PA4S08 8- 32 40 910 1.9 447 17.0 42.0 1 /2 M8
QE6AT055PA5S08 11 - 44 55 650 1.9 453 21.5 44.7 1 /2 M10
QE6AT080PA5S08 16 - 64 80 440 1.9 453 21.5 44.7 1 /2 M10
QE8 系列
QE8AT065PA5S08 13 - 52 65 1200 2.9 516 21.5 44.7 1 /2 M10
QE8AT070PA5S08 14 - 56 70 1100 2.9 516 21.5 44.7 1 /2 M10
QE8AT090PA5S08 17 - 72 90 850 2.9 516 21.5 44.7 1 /2 M10
QE8AT115PA6S08 23 - 92 115 660 2.9 520 24.3 50.0 1 /2 M12
QE8AT150PA6S08 30 - 120 150 510 2.9 520 24.3 50.0 1 /2 M12 - M14
QE8AT225PA7S12 45- 180 225 310 4.1 575 27.5 55.2 3 /4 M16
QE8AT400PA8S12 80 - 320 400 170 6.0 635 33.3 68.5 3 /4 M18

14
