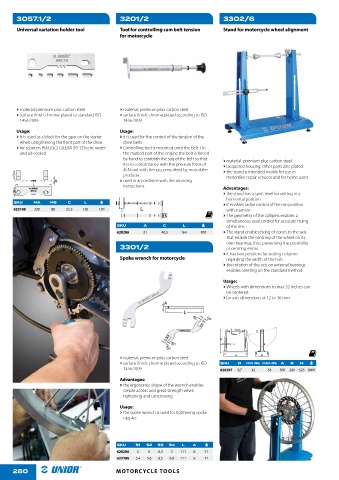

3057.1/2 3201/2 3302/6
Universal variation holder tool Tool for controlling cam belt tension Stand for motorcycle wheel alignment
for motorcycle

› material: premium plus carbon steel › material: premium plus carbon steel
› surface "nish: chrome plated to standard ISO › surface "nish: chrome plated according to ISO

1456:2009 1456:2009
Usage: Usage:
› it is used as a block for the gear on the starter › it is used for the control of the tension of the
when untightening the front part of the drive drive belts
› for scooters PIAGGIO, GILERA 50-125ccm; water- › Controlling tool is mounted onto the belt. On
and air-cooled the marked part of the engine the belt is forced
by hand to establish the sag of the belt so that › material: premium plus carbon steel
it is in conformance with the pressure force of › lacquered housing, other parts zinc plated
45N and with the sag prescribed by motorbike › the stand is intended mainly for use in
producer. motorbike repair services and for home users
› used in accordance with the servicing
instructions Advantages:
› the stand has a spirit level for setting in a
horizontal position
SKU MA MB C L
› it enables radial control of the rim position
623188 220 80 32,5 120 150 with a sensor
› The geometry of the callipers enables a
simultaneous axial control for accurate truing
SKU A C L of the rim.

620286 21 40,5 164 100 › The stand enables "xing of cones to the axis
that enable the centring of the wheel on its
own bearings, thus preventing the possibility
3301/2 of centring errors.
› it has two positions for setting columns
Spoke wrench for motorcycle regarding the width of the hub
› the rotation of the axis on external bearings
enables centring on the standard method
Usage:
› Wheels with dimensions to max 32 inches can
be centered.
› for axis dimensions of 12 to 36 mm

› material: premium plus carbon steel
› surface "nish: chrome plated according to ISO SKU D MIN dia. MAX dia A B H

1456:2009 620297 32" 12 36 500 280 525 9600
Advantages:
› the ergonomic shape of the wrench enables
simple access and great strength when
tightening and unscrewing
Usage:
› the spoke wrench is used for tightening spoke
nipples

SKU S1 S2 S3 S4 L A
620296 5 6 6,3 7 111 6 71
623186 5,4 5,6 6,5 6,8 111 6 71

280 MOTORCYCLE TOOLS
